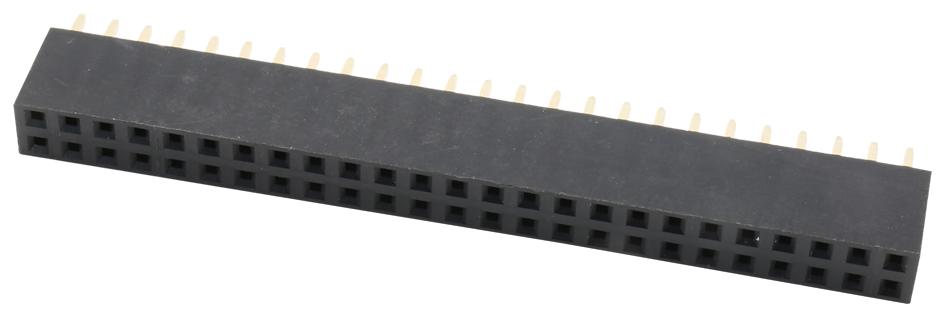

MULTICOMP PRO 2214S50SG85 PCB Socket
The 2214S-50SG-85 from Multicomp Pro is a 50-pin PCB socket with a 2.54mm pitch. It is rated for a voltage of 250V AC/DC and a current of 3A AC/DC. The contact resistance is up to 20 milliohms. It can withstand up to 600V AC for one minute. The insulator is made of PBT with UL94V-0 rating, and the contact is copper alloy with gold plating. It features a vertical through-hole design with a 2-row configuration, suitable for PCB assembly in industrial electronics. Dimensions are 64mm width, 11.5mm height, and 5.08mm depth.
MULTICOMP PRO 2214S50SG85 PCB Socket Specifications:
- Pitch: 2.54mm
- Number of Positions: 50
- Rows: 2
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MO Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials: Insulator - PBT (UL94V-0), Contact Material - Copper Alloy, Finish - Gold Plated
- Dimensions: Width 64mm, Height 11.5mm, Depth 5.08mm
- RoHS Compliant
Buy the Multicomp U30-50SG – Reliable PCB Socket for Industrial Applications
Experience high-quality connectivity with the Multicomp PCB Socket, a reliable 50-pin through-hole component with 2.54mm pitch. Designed for industrial use, it features gold-plated contacts for corrosion resistance, rated for 3A/250V, and withstands voltages up to 600V AC for safety. Made from UL94V-0 PBT, it ensures durability and safety across a wide temperature range. Easy to install, this socket offers precise alignment and secure connection for PCB assembly, making it an ideal choice for industrial, automation, and electronic projects. Purchase online today for dependable performance in demanding environments.
Get Multicomp U30-50SG today—built for precision and long-lasting durability in industrial electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2214S50SG85?
You can click on the BUY or RFQ button to purchase 2214S50SG85 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2214S50SG85?
You can download the 2214S50SG85 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2214S50SG85?
MULTICOMP PRO
