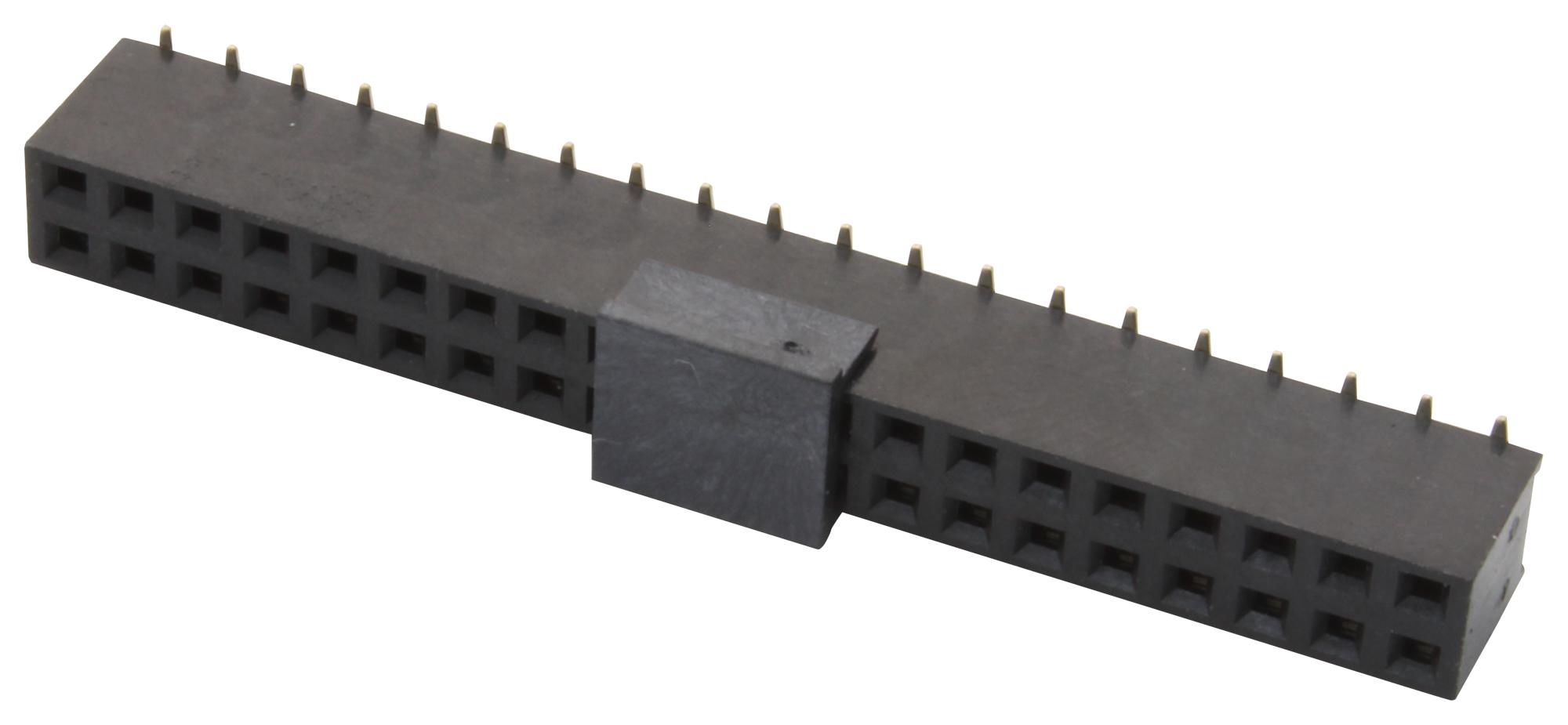

MULTICOMP PRO 2214SM06G75PCR PCB Socket
This 2.54mm pitch PCB socket with cap features a double-row, vertical, SMD type design suitable for various electronic projects. Made from high-temp plastic (Nylon 6T UL94V-0) with gold-plated phosphor bronze contacts, it offers excellent durability and reliable electrical connectivity. Withstanding voltage of 600V AC for one minute, operating temperature from -40°C to +105°C, and a current rating of 3A, this RoHS-compliant connector ensures safety and efficiency in demanding conditions. It includes multiple sizes for 8 to 40 positions, making it versatile for complex circuit assembly.
MULTICOMP PRO 2214SM06G75PCR PCB Socket Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: High Temp. Plastic (Nylon 6T UL94V-0)
- Insulator Colour: Black
- Contact Material: Phosphor Bronze
- Plating: Gold Plated
- Dimensions: Length varies based on size, typical width approx. 5.8mm, height varies from 5.08mm to 30.48mm
- Application: Suitable for PCB assembly, durable and reliable electrical connections
Buy the Buy Multicomp Series 2214SM06G75PCR Part Number 2214SM06G75PCR Online
Discover the reliable and versatile 2.54mm pitch PCB socket with cap designed for surface mounting applications. Made from high-temp plastic with gold-plated phosphor bronze contacts, it supports up to 3A current and withstands voltages up to 250V AC/DC. Its durable construction with RoHS compliance ensures safe operation at temperatures from -40°C to +105°C. Ideal for complex circuit assemblies with various size options from 8 to 40 positions, this connector offers excellent electrical connectivity and mechanical stability for professional electronic projects.
Order your Multicomp Series 2214SM06G75PCR PCB socket today and give your electronic projects the dependable, high-current connection they need.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2214SM06G75PCR?
You can click on the BUY or RFQ button to purchase 2214SM06G75PCR from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2214SM06G75PCR?
You can download the 2214SM06G75PCR datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2214SM06G75PCR?
MULTICOMP PRO
