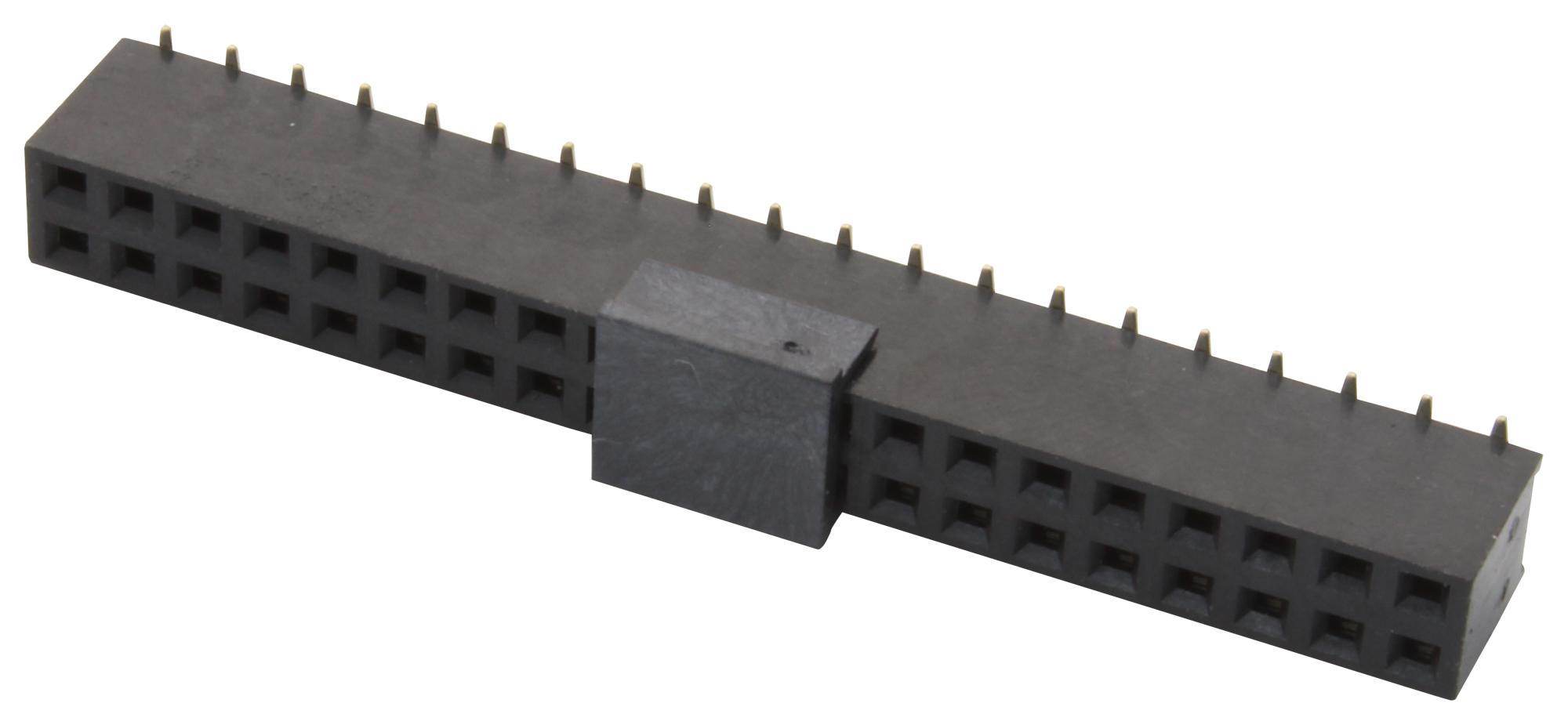

MULTICOMP PRO 2214SM20G75PCR PCB Socket
This 2.54mm PCB socket with cap features a double row, vertical, surface-mount (SMD) type design suitable for secure electrical connections on printed circuit boards. It has a current rating of 3A AC/DC and operates within a temperature range of -40°C to +105°C. Built with high-temp nylon 6T insulator and gold-plated phosphor bronze contacts, it complies with RoHS standards and withstands voltages up to 250V AC/DC. Its compact dimensions and reliable insulation resistance make it ideal for dense electronic assemblies requiring durable, high-quality connectors.
MULTICOMP PRO 2214SM20G75PCR PCB Socket Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: High Temp. Plastic (Nylon 6T UL94V-0)
- Insulator Colour: Black
- Contact Material: Phosphor Bronze
- Plating: Gold Plated
- Dimensions (mm): A: 20.28, B: 17.78, C: 8.3
- RoHS compliant
- Suitable for dense PCB mounting
- SMD mounting style for automated assembly
Buy the Buy MultiComp Pro 2.54mm PCB Socket Part Number 2214SM20G75PCR Online
Order the 2.54mm PCB socket with cap, featuring double row, vertical SMD design, 3A current capacity, and RoHS compliance. Its high-temp nylon insulator and gold-plated phosphor bronze contacts ensure durability and excellent electrical performance. Ideal for dense PCB assemblies, this connector withstands voltages up to 250V AC/DC and operates from -40°C to +105°C, providing a reliable and stable connection. Perfect for automation, electronics manufacturing, and prototyping, get yours online today for efficient assembly and high-quality performance.
Buy MultiComp Pro 2.54mm PCB Socket 2214SM20G75PCR now and experience reliable connections with durable gold-plated contacts for your electronic projects.
