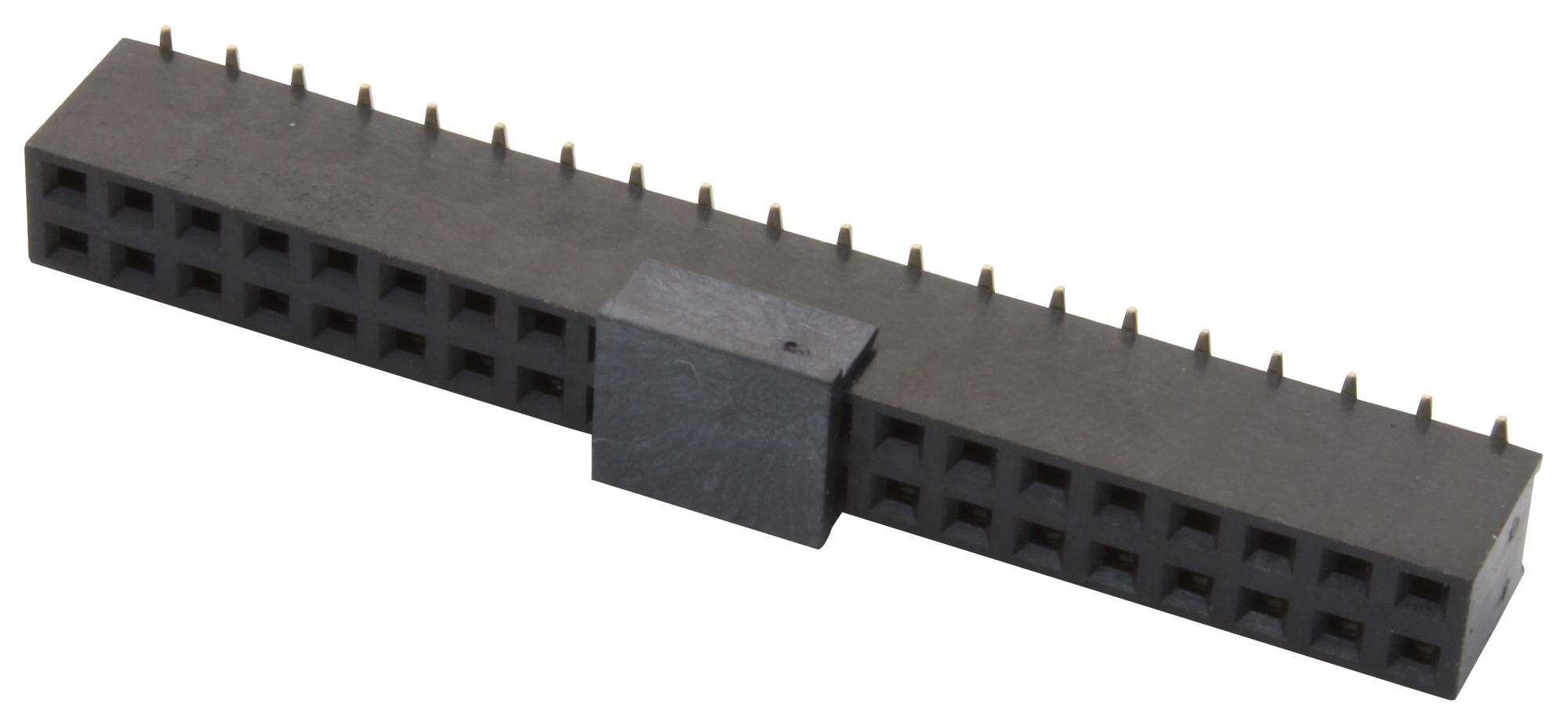

MULTICOMP PRO 2214SM40G75PCR PCB Socket
The 2.54mm PCB socket with cap is a vertical, surface-mount device designed for reliable connections on printed circuit boards. It features a double row configuration suitable for various electronic applications, supporting current ratings up to 3A and voltage ratings of 250V AC/DC. Made from high-temp nylon 6T UL94V-0 insulator with gold-plated phosphor bronze contacts, it ensures excellent conductivity and corrosion resistance. Its compact design and precise dimensions facilitate easy assembly, making it ideal for modern electronics requiring durable and secure connectors.
MULTICOMP PRO 2214SM40G75PCR PCB Socket Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator: High Temp. Plastic (Nylon 6T UL94V-0)
- Insulator Colour: Black
- Contact Material: Phosphor Bronze
- Plating: Gold Plated
- Dimensions: Length varies with model, typical range 8.12 mm to 51.3 mm, width approximately 5.08 mm to 48.26 mm, height about 5.8 mm to 8.3 mm
- Suitable for surface-mount technology (SMT)
- Compatible with various PCB layouts, accommodating 2 to 40 positions
- RoHS compliant and designed for durable, low-resistance connections
Buy the Multicomp Series PCB Socket: 2.54mm Vertical SMD Connectors 2214SM-40G-75-PCR
Enhance your electronic projects with the high-quality 2.54mm PCB socket featuring a secure cap and vertical SMD design. Perfect for reliable connections on printed circuit boards, it supports up to 3A current and 250V voltage ratings. Made from durable high-temp nylon and gold-plated contacts, it offers excellent conductivity, corrosion resistance, and ease of assembly. Suitable for various PCB layouts with multiple positions, this RoHS-compliant connector ensures long-lasting performance and robust electrical connections, ideal for professional electronics engineering and manufacturing.
Get Multicomp Series PCB Socket 2214SM-40G-75-PCR today—built for precision, durability, and reliable electronic connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2214SM40G75PCR?
You can click on the BUY or RFQ button to purchase 2214SM40G75PCR from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2214SM40G75PCR?
You can download the 2214SM40G75PCR datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2214SM40G75PCR?
MULTICOMP PRO
