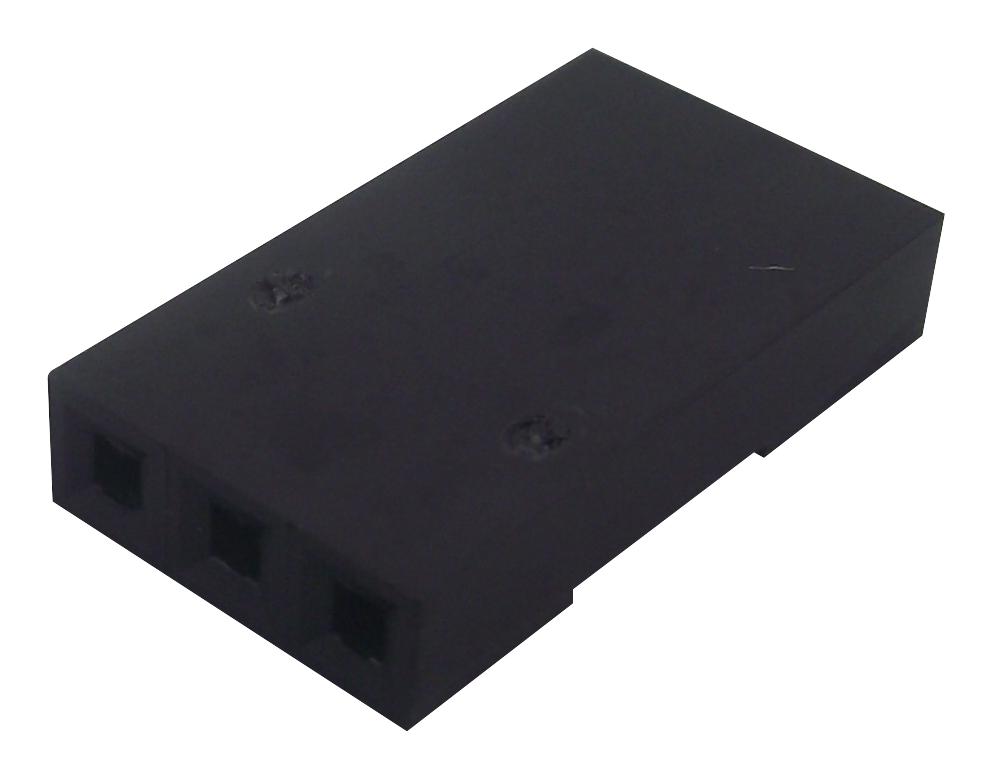

MULTICOMP PRO 2226A03 Receptacle Connector Housing
The MULTICOMP PRO 2226A-03 is a receptacle connector housing designed for use in a variety of applications requiring secure and reliable electrical connections. This 3-way housing is constructed with a Noryl (UL94V-1) insulator, ensuring excellent insulation properties and flame retardancy. It is ideal for applications in industrial automation, consumer electronics, and automotive systems where a robust and dependable connector solution is needed. The housing's design facilitates easy crimping and assembly, contributing to efficient manufacturing processes. Dimensions vary based on the number of circuits, providing flexibility for different wiring configurations.
MULTICOMP PRO 2226A03 Receptacle Connector Housing Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 15mΩ Min.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC/minute
- Temperature Range: -25°C to +85°C
- Insulator Material: Noryl (UL94V-1)
- Circuits/Ways: 3
- A Dimension (mm): 7.82
- B Dimension (mm): 5.08
- A Dimension Tolerance: ±0.3 (21P to 30P)
- General Tolerance: X=±0.2 .XX=±0.15
