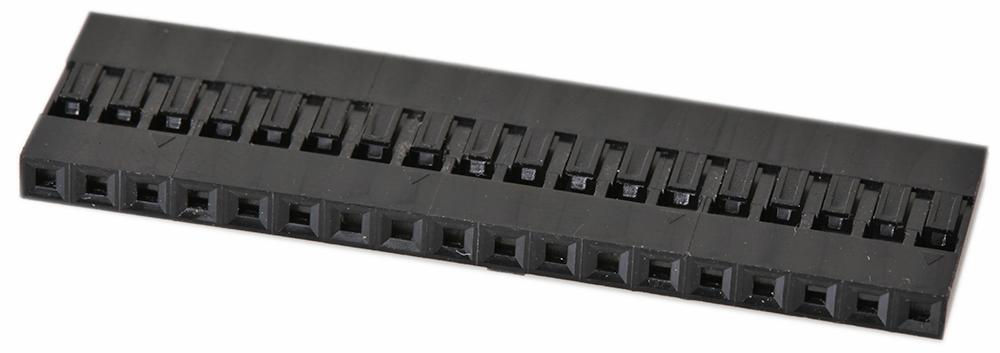

MULTICOMP PRO 2226A18 Crimp Housing Receptacle
The MULTICOMP PRO 2226A-18 is a versatile crimp housing receptacle designed to provide secure and reliable connections in a variety of applications. Constructed with a Noryl (UL94V-1) insulator, this housing offers excellent insulation properties and flame retardancy. It is rated for a current of 3A and a voltage of 250V AC/DC, making it suitable for a wide range of electrical systems. The housing's robust design and ease of use make it a preferred choice for industrial automation, automotive wiring, and consumer electronics assembly.
MULTICOMP PRO 2226A18 Crimp Housing Receptacle Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 15mΩ Min.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC/minute
- Temperature Range: -25°C to +85°C
- Insulator Material: Noryl (UL94V-1)
- Circuits/Ways: 18
- Dimension A(mm): 45.92
- Dimension B(mm): 43.18
- A Dimension Tolerance: ±0.3 (21P to 30P)
- General Tolerance X: ±0.2
- General Tolerance XX: ±0.15
