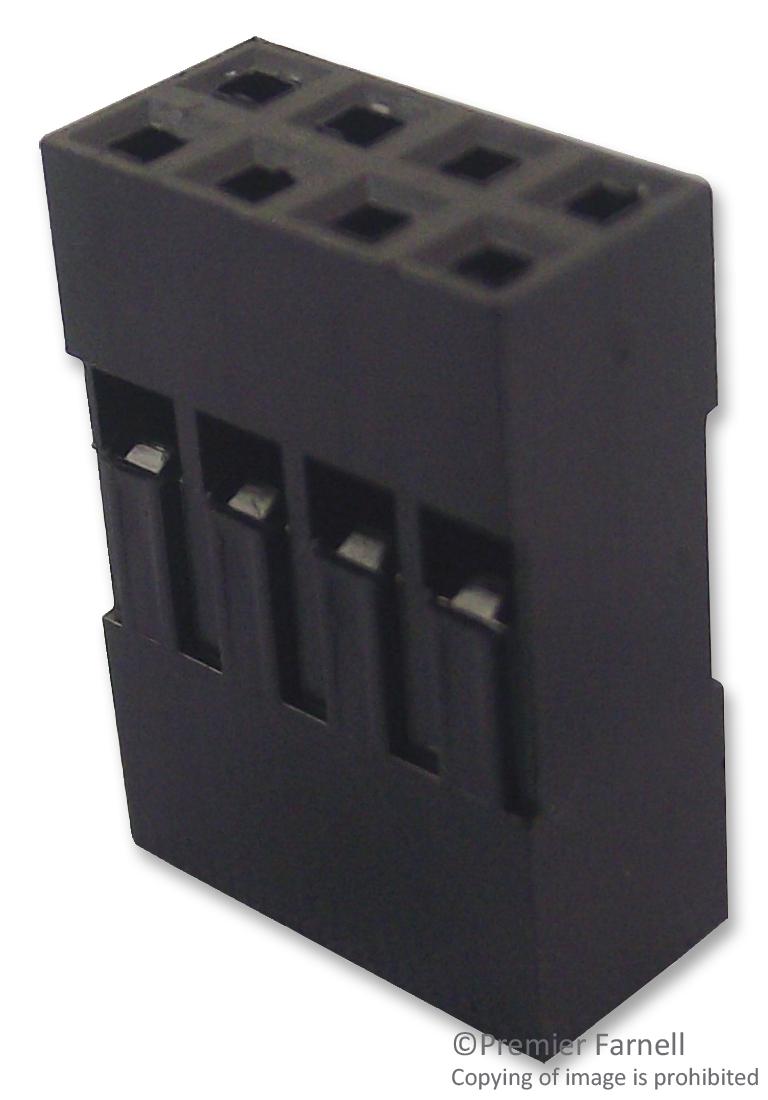

MULTICOMP PRO 2226B08 8 Way Mini Latch Housing
The MULTICOMP PRO 2226B-08 is a wire-to-board connector designed for secure and reliable connections in a variety of industrial applications. This 8-way mini latch housing is suitable for applications requiring a compact and robust connector solution. It is constructed with a polyester insulator and phosphor bronze contacts, finished with tin or gold plating for excellent conductivity and corrosion resistance. The connector supports wire gauges from 28AWG to 24AWG and is rated for withstand voltages up to 600V and current ratings up to 3A. Its compact dimensions and easy-to-use latching mechanism make it ideal for space-constrained environments and automated assembly processes.
MULTICOMP PRO 2226B08 8 Way Mini Latch Housing Specifications:
- Connector Type: Wire to Board
- Contact Termination: Crimp
- Gender: Receptacle
- No. of Contacts: 8
- No. of Rows: 2
- Pitch Spacing: 2.54mm
- Withstand Voltage: 600V
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Max. Contact Resistance: 20mΩ
- Insulation Resistance: 1,000MΩ
- Withstanding Voltage: 1,000V AC/minute
- Temperature Range: -25°C to +125°C
- Application Wires: 28AWG to 24AWG
- Insulator Material: Polyester
- Contact Material: Phosphor Bronze
- Finish: Tin Plated or Gold Plated
- A Dimension: 7.62mm
- B Dimension: 10.16mm
