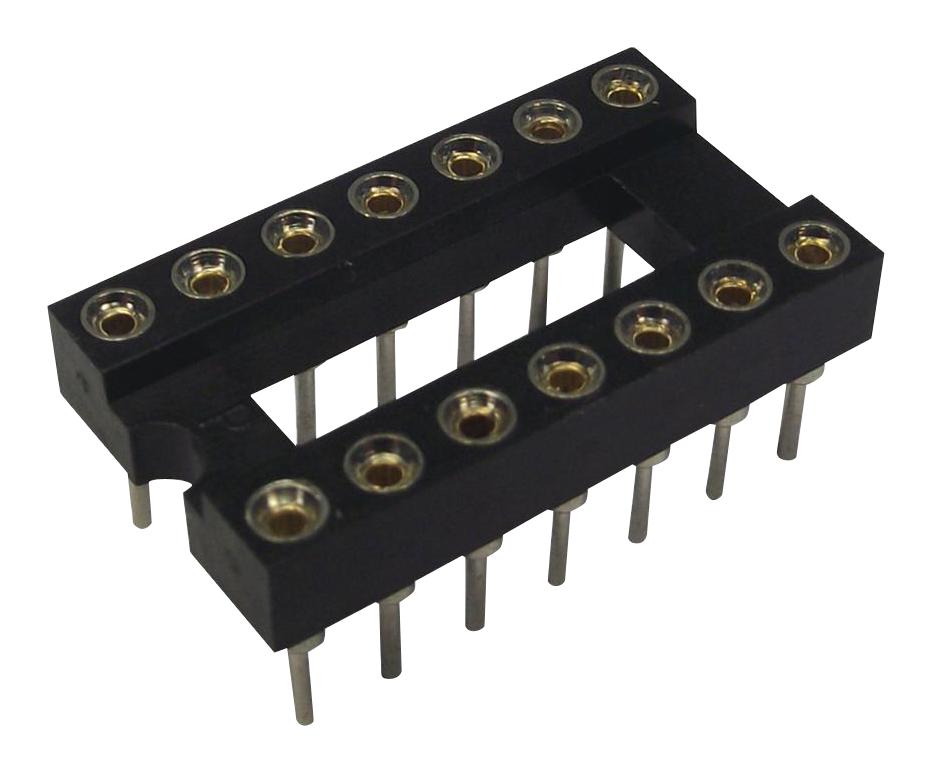

MULTICOMP PRO 2227MC1403F1 IC Socket Machine Pin
The MULTICOMP PRO 2227MC-14-03-F1 is a precision-engineered IC socket designed for robust and reliable performance in a wide range of electronic applications. Featuring a 2.54mm pitch, this socket is ideal for automated assembly processes. The tin-plated beryllium copper contacts ensure excellent conductivity and corrosion resistance, while the high-temperature plastic (UL94V-0) insulator provides superior insulation and heat resistance. Commonly used in industrial control systems, telecommunications equipment, and consumer electronics, this socket offers a secure and dependable connection for integrated circuits.
MULTICOMP PRO 2227MC1403F1 IC Socket Machine Pin Specifications:
- Current Rating: 1A AC/DC
- AC/DC Voltage Rating: 100V
- Maximum Contact Resistance: 15mΩ
- Minimum Insulator Resistance: 5,000MΩ
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature: -40°C to +105°C
- Insulator Material: High Temperature Plastic (UL94V-0)
- Contact Material: Beryllium Copper (Becu)
- Plating: Tin Plated
- Circuits: 14
- Dimension A: 17.78mm
- Dimension B: 15.24mm
- Spacing: 3
Buy the 2227MC-14-03-F1 MULTICOMP PRO IC Socket Machine Pin | myMectronic
Purchase the MULTICOMP PRO 2227MC-14-03-F1 IC Socket securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2227MC1403F1?
You can click on the BUY or RFQ button to purchase 2227MC1403F1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2227MC1403F1?
You can download the 2227MC1403F1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2227MC1403F1?
MULTICOMP PRO
