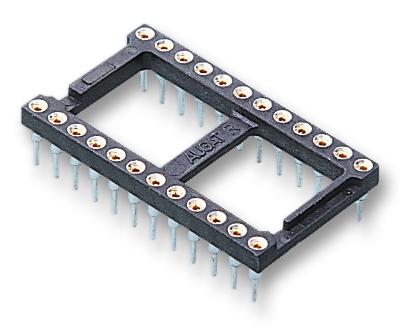

MULTICOMP PRO 2227MC180308F1 IC Socket Machine Pin
The MULTICOMP PRO 2227MC-18-03-08-F1 is a 2.54mm pitch machine pin IC socket designed for automated assembly processes. Constructed with phosphor bronze contacts and a durable PBT insulator, this socket provides excellent electrical conductivity and mechanical stability. It is suitable for a wide range of IC applications in industrial, consumer electronics, and telecommunications equipment. The socket's robust design ensures reliable performance and long-term reliability in demanding environments.
MULTICOMP PRO 2227MC180308F1 IC Socket Machine Pin Specifications:
- Current Rating: 1A AC/DC
- Maximum Contact Resistance: 20mΩ
- Minimum Insulator Resistance: 1,000MΩ
- Withstanding Voltage: 1000V AC for one minute
- Operating Temperature: -55°C to +125°C
- Insulator Material: PBT
- Contact Material: Phosphor Bronze
- Plating Material: Tin Plating
- Dimension A: 22.86 mm
- Dimension B: 20.32 mm
- Dimension C: 10.16 mm
- Dimension D: 7.62 mm
- Spacing: 03
