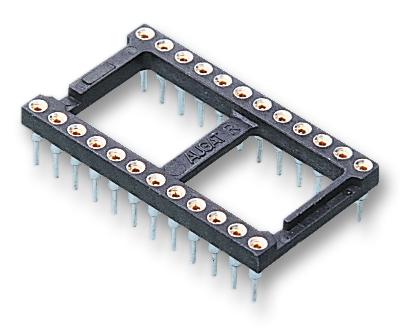

MULTICOMP PRO 2227MC2003F1 2.54mm IC Socket
The MULTICOMP PRO 2227MC-20-03-F1 is a 2.54mm pitch IC socket specifically engineered for machine pin insertion. Constructed with high-temperature plastic (UL94V-0) and Beryllium Copper contacts, it offers excellent electrical and mechanical performance. The tin-plated contacts ensure reliable connectivity and corrosion resistance. This socket is suitable for a wide range of applications including industrial automation, consumer electronics, and telecommunications equipment where secure and reliable IC mounting is required. Its robust design and quality materials contribute to long-term durability and consistent performance.
MULTICOMP PRO 2227MC2003F1 2.54mm IC Socket Specifications:
- Current Rating: 1A AC/DC
- AC/DC Voltage Rating: 100V
- Maximum Contact Resistance: 15mΩ
- Minimum Insulator Resistance: 5,000MΩ
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature: -40°C to +105°C
- Insulator: High Temperature Plastic (UL94V-0)
- Contacts: Beryllium Copper (Becu)
- Plating: Tin Plated
- Dimension A: 25.4 mm
- Dimension B: 22.86 mm
- Dimension C: N/A
- Dimension D: N/A
- Spacing: 3
