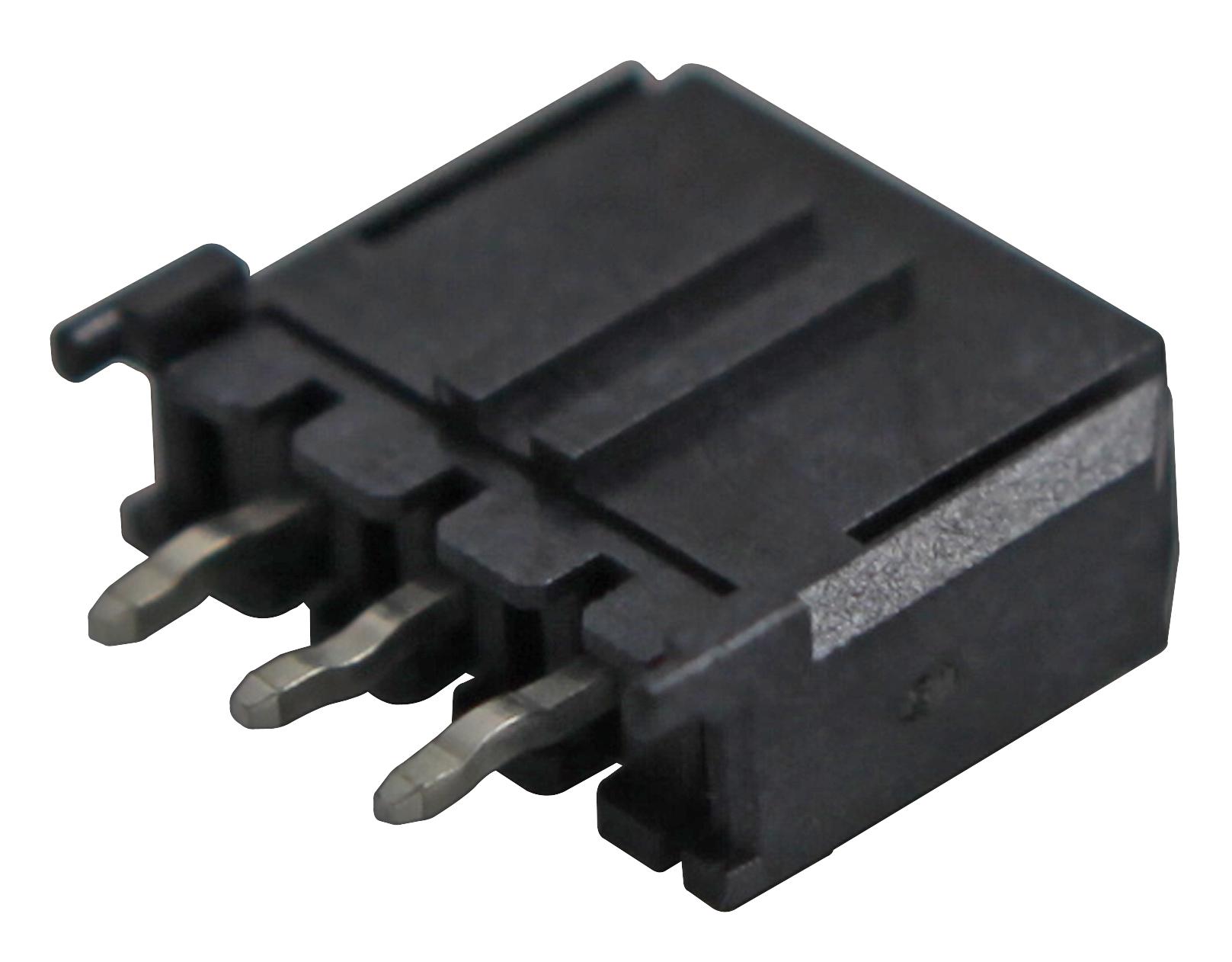

MULTICOMP PRO 22615561SA03 Single Row Header Connector
The 2261(5561) series single row headers are 3mm pitch through-hole connectors designed for reliable electrical connections in industrial and electronic applications. Made with a nylon 46 insulator and copper alloy tin-plated contacts, these headers support a current rating of 5.0A AC/DC and a voltage of 250V AC/DC. They withstand voltage of 1,500V AC for one minute, with an insulation resistance of 1,000MQ and a contact resistance exceeding 10mQ. Operating temperature ranges from -25°C to +105°C, making them suitable for demanding environments.
MULTICOMP PRO 22615561SA03 Single Row Header Connector Specifications:
- Pitch: 3mm
- Current Rating: 5.0A AC/DC
- Voltage Rating: 250V AC/DC
- Max. Contact Resistance: > 10mQ
- Insulation Resistance: 1,000MQ
- Withstanding Voltage: 1,500V AC for one minute
- Operating Temperature Range: -25°C to +105°C
- Wafer Insulator Material: Nylon 46 (UL94V-2)
- Contact Material: Copper Alloy Tin Plated
- Number of Positions: 2, 3, 4
- Type: Single Row, Straight, Through Hole
- Dimensions: 9.65mm (2-position), 12.65mm (3-position), 15.65mm (4-position)
Buy the Multicomp Pro 2261–Reliable Electronic Connectors for Industrial Applications
Discover the reliable single row header connectors from Multicomp Pro, designed with 3mm pitch for secure through-hole connections. Constructed from high-quality nylon 46 insulator and copper alloy tin-plated contacts, these headers support 5A current and 250V voltage, making them suitable for various industrial electronics. They withstand 1,500V AC for one minute and work across -25°C to +105°C temperature ranges. Easy to install and perfect for creating robust, dependable connections in demanding environments.
Buy Multicomp Pro 2261 series connectors now and ensure secure, durable connections suitable for industrial and electronic applications.
