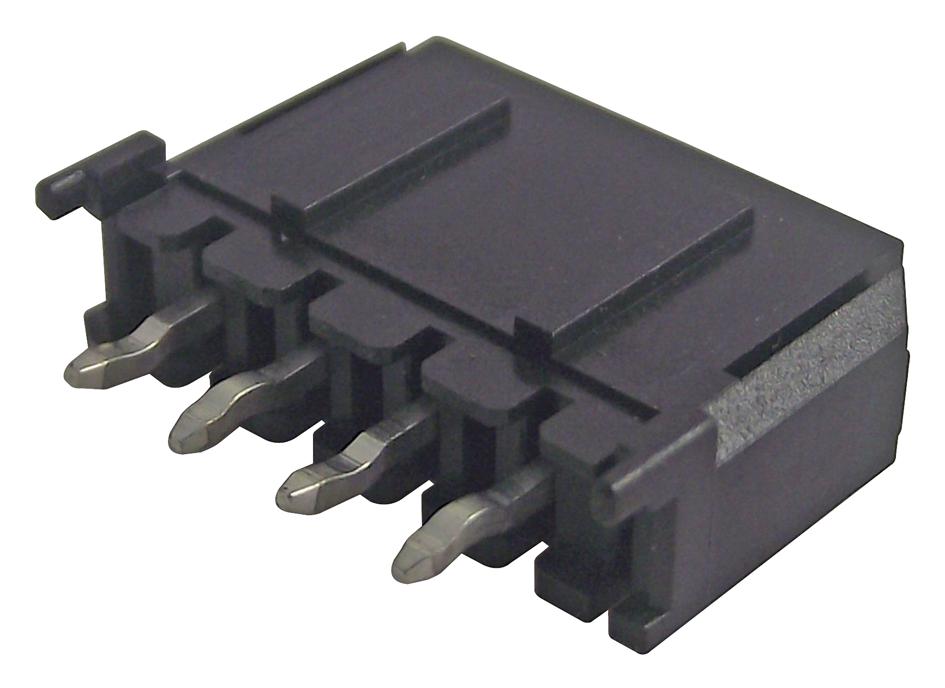

MULTICOMP-PRO 22615561SA04 Single Row Header
This 3mm pitch single row header with 4 positions from the 2261(5561) series is designed for through-hole mounting applications. Made with a nylon 46 insulator and copper alloy tin-plated contacts, it offers high current and voltage ratings of 5.0A and 250V AC/DC respectively. The connector features a compact size with dimensions of 9mm length per position, a maximum contact resistance of >10mΩ, and an insulation resistance of 1,000MΩ. It withstands voltage of 1500V AC for one minute and operates within -25°C to +105°C, ensuring reliable performance in various environments.
MULTICOMP-PRO 22615561SA04 Single Row Header Specifications:
- Current Rating: 5.0A AC/DC
- Voltage Rating: 250V AC/DC
- Max. Contact Resistance: >10mΩ
- Min. Insulation Resistance: 1,000MΩ
- Withstanding Voltage: 1,500V AC for one minute
- Operating Temperature Range: -25°C to +105°C
- Wafer Insulator: Nylon 46 (UL94V-2)
- Contact Pin Material: Copper Alloy Tin Plated
- Dimensions: Length varies with position, 9mm for 2 positions, 12.65mm for 3 positions, 15.65mm for 4 positions
- Type: Straight, Single Row
- RoHS Compliant.
Buy the Buy Multicomp Series2261(5561)SA-04 Part Number 22615561SA04 Online
Enhance your electronic assemblies with our high-quality single row header from the 2261 series. Featuring a 3mm pitch, 4-pin configuration, and durable copper alloy contacts, this connector ensures reliable signals and power transfer. Its compact size and RoHS compliance make it suitable for a wide range of applications including industrial equipment and control systems. Easy to solder and install, the header withstands up to 1500V AC and operates efficiently from -25°C to +105°C, ensuring durability and performance in demanding environments.
Order your Multicomp Series2261(5561)SA-04 4-Pin Single Row Header today and ensure reliable connectivity for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 22615561SA04?
You can click on the BUY or RFQ button to purchase 22615561SA04 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 22615561SA04?
You can download the 22615561SA04 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 22615561SA04?
MULTICOMP-PRO
