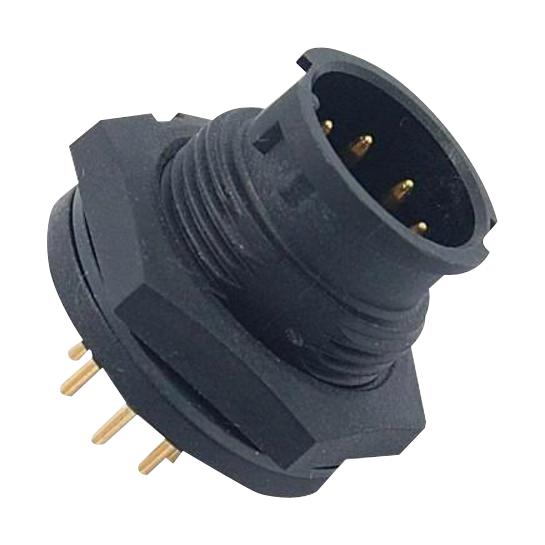

MULTICOMP PRO 2CT3002W07300 Panel Mount Connector
The 2CT3002-W07300 is a waterproof circular panel mount connector with 7 ways, rated IP67 for dust and water resistance, suitable for outdoor and industrial uses. Made from nylon with glass fiber reinforcement and polybutylene terephthalate, it handles up to 5A at temperatures from -40°C to +105°C. Featuring gold-plated copper alloy contacts with low resistance, it withstands over 500 mating cycles and is tested for salt spray corrosion. Its panel thickness compatibility is up to 4mm, making it robust for demanding environments. The connector has received high user ratings and includes a 12-month limited warranty.
MULTICOMP PRO 2CT3002W07300 Panel Mount Connector Specifications:
- Waterproof Rate: IP67, Immersed in 1m water for 30 minutes
- Electrical Characteristics: Temperature Range: -40°C to +105°C, Current Rating: 5A, Dielectric Withstanding Voltage: 500V AC for one minute
- Panel Thickness Compatibility: Up to 4mm, Contact Material: Copper alloy with gold plating, Resistance: ≤10 milliohms contact resistance, Insulation Resistance: ≥100 megaohms at 500VDC
- Mechanical & Durability: Over 500 mating cycles, Salt spray corrosion test for 48 hours
- Materials: Body - Nylon with GF, Contacts - Brass with gold plating, Gasket - EPDM, Nut - Nylon + GF
- Operating Environment: -40°C to +105°C, Suitable for outdoor use and industrial environments
Buy the Multicomp Reliable 2CT3002W07300 for Industrial Applications
Secure your projects with the waterproof 2CT3002-W07300 panel mount connector from Multicomp. This 7-way, IP67-rated connector is perfect for outdoor and industrial environments, handling up to 5A at -40°C to +105°C. Made from durable nylon with gold-plated contacts, it ensures reliable electrical performance and longevity. Its panel thickness compatibility of up to 4mm simplifies installation. Available online, this connector offers low contact resistance, high durability, and salt spray resistance, supported by a 12-month warranty. Purchase now for dependable, industrial-grade connectivity.
Order your Multicomp series 2CT3002W07300 today and ensure robust, waterproof connections for your outdoor industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2CT3002W07300?
You can click on the BUY or RFQ button to purchase 2CT3002W07300 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2CT3002W07300?
You can download the 2CT3002W07300 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2CT3002W07300?
MULTICOMP PRO
