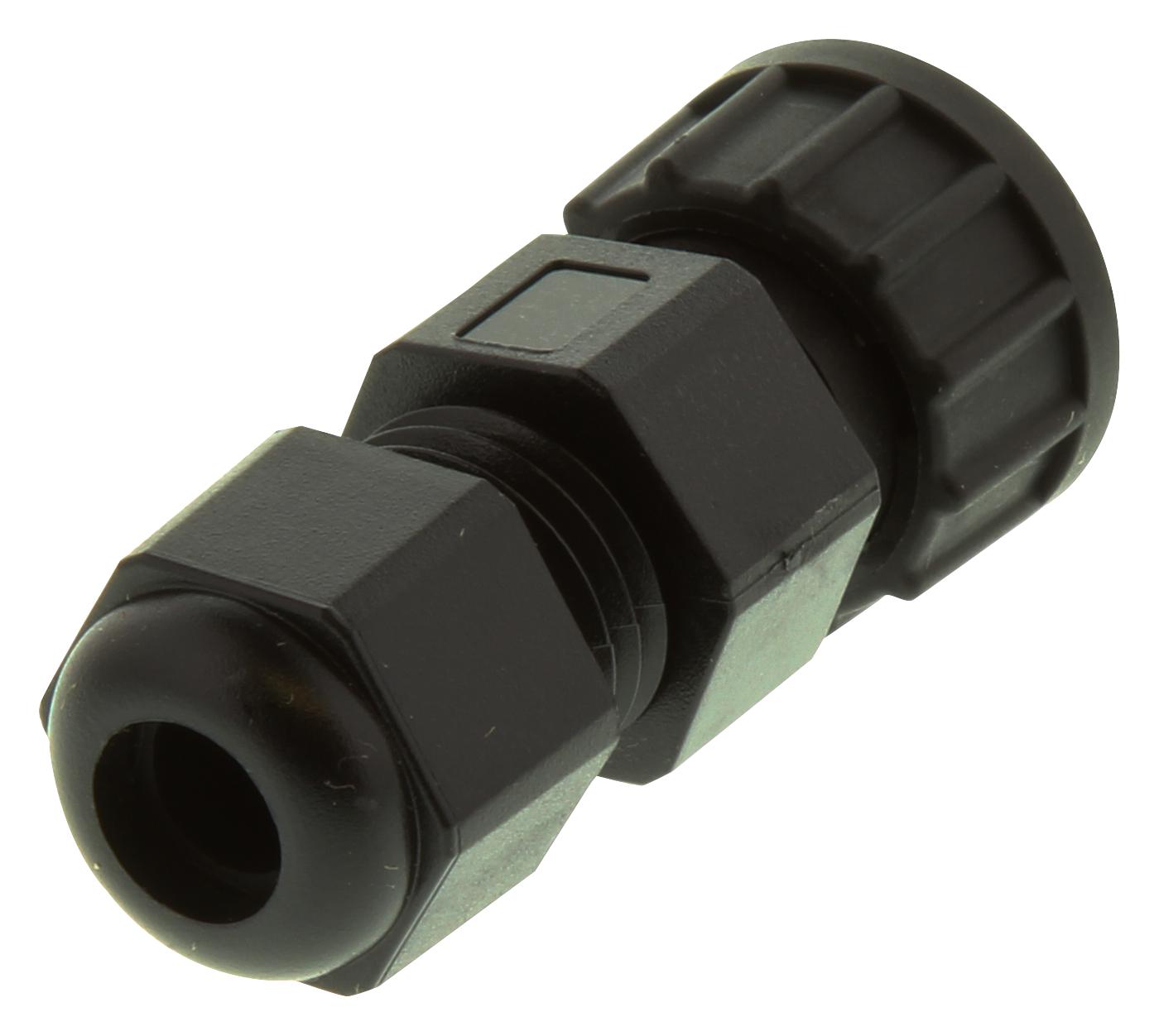

MULTICOMP PRO 2CT3032W04200 Industrial Female Connector
The 2CT3032-W04200 from Multicomp is a 4-way, 2A field wiring female connector featuring solder pin termination. It is an IP67 rated circular in-line connector with a lock-type mating style, designed for reliable connection in industrial environments. The connector body is made from nylon and glass-filled polybutylene terephthalate, ensuring durability. It offers a contact resistance of less than or equal to 30 milliohms, and an insulation resistance of at least 100 megaohms at 500V DC. The connector can withstand up to 500 mating cycles and operates within a temperature range of -40°C to +100°C. Copper alloy pin contacts are gold-plated for corrosion resistance. It is suitable for wire gauges 24 to 26 AWG, with cable outer diameters between 4mm and 6.5mm. A salt spray test confirms it can withstand 48 hours of corrosion exposure. Multicomp products are rated 4.6 out of 5 stars, with a 12-month limited warranty. Ideal for industrial applications.
MULTICOMP PRO 2CT3032W04200 Industrial Female Connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Female pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Cable OD: 4mm to 6.5mm
- Contact Resistance: ≤30 milliohms
- Insulation Resistance: ≥100 MΩ at 500V DC
- Durability: 500 cycles minimum
- Breakdown Voltage: BAC 500V/1 minute
- Corrosion Resistance: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67
Buy the Multicomp 2CT3032-W04200 – Reliable Industrial Female Connectors
Get your Multicomp 4-way, 2A IP67 female connector with solder pin termination now online. Designed for industrial applications, it features durable nylon construction, gold-plated copper contacts, and withstands harsh environments. Easily connect wires ranging from 24 to 26 AWG with cable diameters between 4mm and 6.5mm. With a reliable lock-type mating style, the connector endures up to 500 mating cycles and resists corrosion with salt spray testing. Purchase today for dependable, waterproof electrical connections in industrial and automation projects.
Order your Multicomp Series 2CT3032-W04200 industrial female connector today and ensure durable, waterproof connections for your field wiring needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2CT3032W04200?
You can click on the BUY or RFQ button to purchase 2CT3032W04200 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2CT3032W04200?
You can download the 2CT3032W04200 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2CT3032W04200?
MULTICOMP PRO
