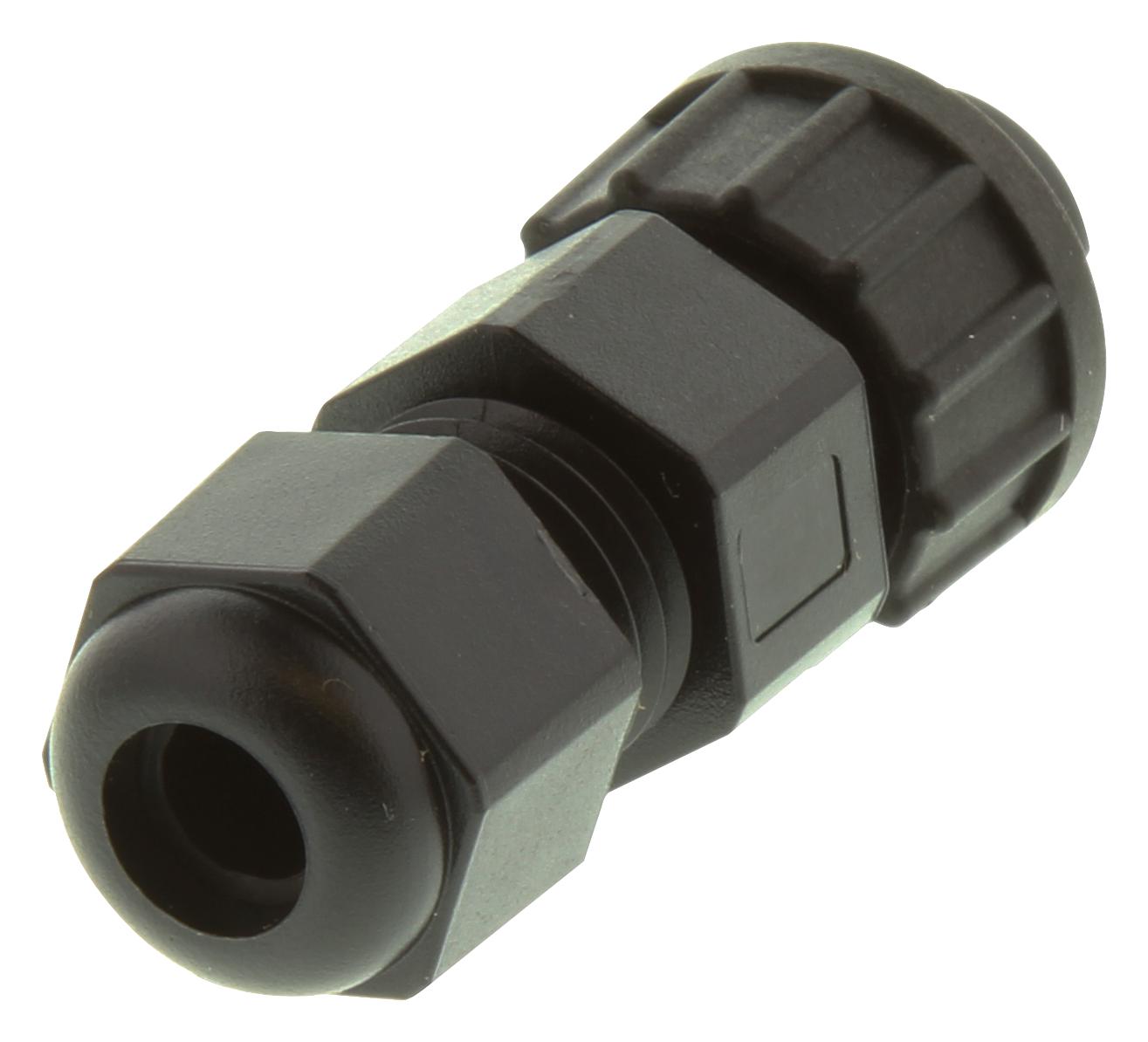

MULTICOMP PRO 2CT3032W06300 field wiring connector
The 2CT3032-W06300 from Multicomp is a 6-position, female connector designed for field wiring applications. It features solder pin contacts that are gold-plated copper alloy, housed in a durable nylon+GF and PBT connector body. The connector uses a lock-type mating style, suitable for cables with outer diameters from 4mm to 6.5mm, and supports at least 500 mating cycles. It offers low contact resistance (≤30 mΩ without cable), high insulation resistance (≥100 MΩ at DC 500V), and can withstand breakdown voltages of up to AC 500V for one minute. The connector is resistant to corrosion after 48 hours of salt spray exposure, operates across temperatures from -40°C to +100°C, and has a current rating of 5A with compatible cables ranging from 22AWG to 24AWG. It is rated IP67 for waterproof performance and suitable for industrial applications.
MULTICOMP PRO 2CT3032W06300 field wiring connector Specifications:
- Contact Material: Copper Alloy, Gold Plated
- Connector Body Material: Nylon+GF, PBT
- Cable OD Range: 4mm to 6.5mm
- Contact Resistance: ≤30 mΩ without cable
- Insulation Resistance: ≥100 MΩ at DC 500V
- Breakdown Voltage: AC 500V for 1 minute
- Durability: 500 cycles minimum
- Corrosion Resistance: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67 rated
- Current Rating: 5A
- Number of Positions: 6
- Mating Style: Lock type
- Pin Style: Female solder pin
Buy the Multicomp Series 6 Position Female Connector: 2CT3032W06300
Enhance your electrical assemblies with the Multicomp 6-position female connector featuring durable gold-plated contacts, a lock-type mating style, and waterproof IP67 protection. Designed for industrial environments, it supports cables from 4mm to 6.5mm outer diameter, rated for 5A current. With high insulation and low contact resistance, this connector withstands harsh conditions from -40°C to +100°C and resists corrosion after salt spray exposure. Perfect for reliable, durable wire connections in demanding settings—order online today for fast delivery and trusted quality.
Order your Multicomp Series 6 Position Female Connector today and give your industrial wiring projects the dependable waterproof performance they deserve.
