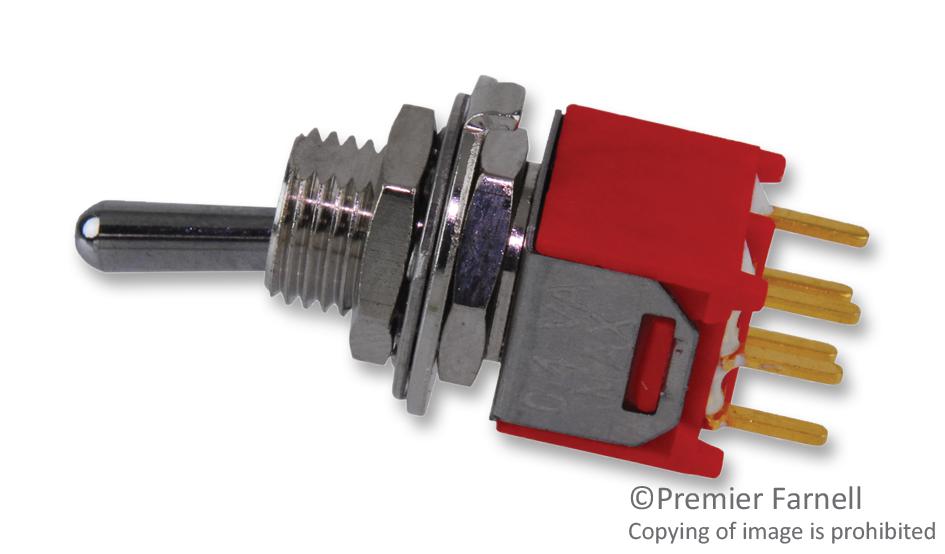

MULTICOMP-PRO 2MD1T1B5M2RE DPDT Toggle Switch
The 2MD1T1B5M2RE is a double-pole double-throw DPDT toggle switch with PC thru-hole terminations, featuring a compact design suitable for industrial and electronic applications. It includes a chrome-plated brass actuator, nickel-plated brass bushing, and stainless steel housing, supporting robust operation in various environments. With gold-plated contacts, it offers a contact resistance of 20 milliohms at 2-4VDC/100mA and a dielectric strength of 1000 VRMS at sea level. Its operating temperature spans from -30°C to 85°C, ensuring durability and reliable switching performance over 30,000 cycles.
MULTICOMP-PRO 2MD1T1B5M2RE DPDT Toggle Switch Specifications:
- Contact Resistance: 20mΩ initial at 2-4 V DC 100mA
- Mechanical Life: 30,000 make and break cycles
- Maximum Insulation Resistance: 1,000 MΩ
- Dielectric Strength: 1,000 V rms at sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator: Brass, chrome plated
- Bushing: Brass, nickel plated
- Housing: Stainless steel
- Switch Support: Brass, tin plated
- Terminal/Contact: Gold plated
- Dimensions: Actuator height 9.4mm, Bushing height 7.87mm, Suitable for PC thru-hole mounting
- Switch Function: DPDT, On-None-On configuration
Buy the Multicomp Series DPDT Toggle Switch: 2MD1T1B5M2RE
Purchase the Multicomp Series DPDT Toggle Switch 2MD1T1B5M2RE online today. Designed with gold-plated contacts and a durable metal construction, this switch provides reliable performance in industrial applications. Its compact size, operational temperature range of -30°C to 85°C, and high cycle life of 30,000 make it ideal for controlling electrical circuits efficiently. Available with PC thru-hole mounting, this versatile switch ensures excellent insulation resistance and dielectric strength, making it the perfect choice for your electronic and industrial projects.
Get Multicomp DPDT Toggle Switch 2MD1T1B5M2RE today—built for precise switching and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 2MD1T1B5M2RE?
You can click on the BUY or RFQ button to purchase 2MD1T1B5M2RE from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 2MD1T1B5M2RE?
You can download the 2MD1T1B5M2RE datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 2MD1T1B5M2RE?
MULTICOMP-PRO
