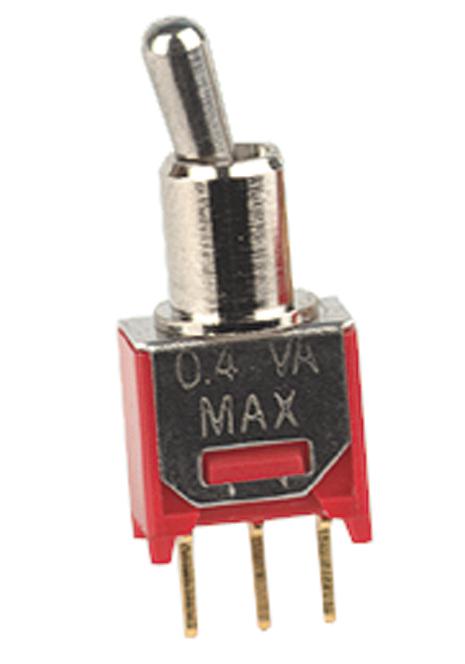

MULTICOMP PRO 2MD3T2B2M7RE Toggle Switch
This highly rated multicomp pro toggle switch offers reliable switching performance with a 4.6-star rating and a 12-month warranty. Suitable for various electronic and industrial applications, it features multiple pole options including SPDT and DPDT configurations, vertical and horizontal mounting styles, and epoxy-sealed construction. The switch supports manual soldering or wave soldering at recommended temperatures up to 260°C, ensuring durable and secure connections. Crafted with high-quality materials such as brass, nickel-plated, and gold contacts, it is designed for long-term use in demanding environments. Compatible with PCB and panel mounting, it guarantees dependable operation with excellent contact resistance and dielectric strength.
MULTICOMP PRO 2MD3T2B2M7RE Toggle Switch Specifications:
- Contact Rating: 0.4 volt-amps max. at 20V max. (AC or DC)
- Mechanical Life: 30,000 make-and-break cycles
- Contact Resistance: 20mΩ max. initial at 2 to 4V DC
- Dielectric Strength: 1,000VRms at sea level
- Operating Temperature: -30°C to +85°C
- Materials: Case and Bushing - Diallyl phthalate, Brass, Chrome or Nickel plated, Stainless steel, Tin plated contacts
- Mounting: PCB, panel, or threaded options
- Soldering: Manual or wave, with recommended temperatures up to 260°C
- Dimensions: Millimetres (Inches), specific sizes vary by model
- Seal: Epoxy (STD), RoHS compliant
- Poles: SPDT and DPDT, with various actuation options
- Actuator Heights: T1 = 9.40 mm, T2 = 5.33 mm
- Bushing Heights: B2 = 5.59 mm, B5 = 7.87 mm
- Terminations: PVC through hole, right angle, vertical right angle
- Contact Material: Gold or Nickel plated
- Soldering Process: Manual and wave soldering with specific temperature profiles
Buy the Multicomp Series Sub-Miniature Toggle Switch: 2MD3T2B2M7RE
Enhance your electronic projects with our reliable multicomp series toggle switch. Featuring high-quality materials, epoxy sealing, and versatile mounting options, this switch ensures long-term durability and dependable performance. Perfect for industrial, automation, and control applications, it supports manual and wave soldering processes for flexible manufacturing. Designed with multiple pole options including SPDT and DPDT configurations, it is suitable for PCB and panel mounting. Trust our highly rated switch to deliver consistent switching performance with excellent contact resistance and dielectric strength.
Order your multicomp series DPDT vertical toggle switch 2MD3T2B2M7RE today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2MD3T2B2M7RE?
You can click on the BUY or RFQ button to purchase 2MD3T2B2M7RE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2MD3T2B2M7RE?
You can download the 2MD3T2B2M7RE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2MD3T2B2M7RE?
MULTICOMP PRO
