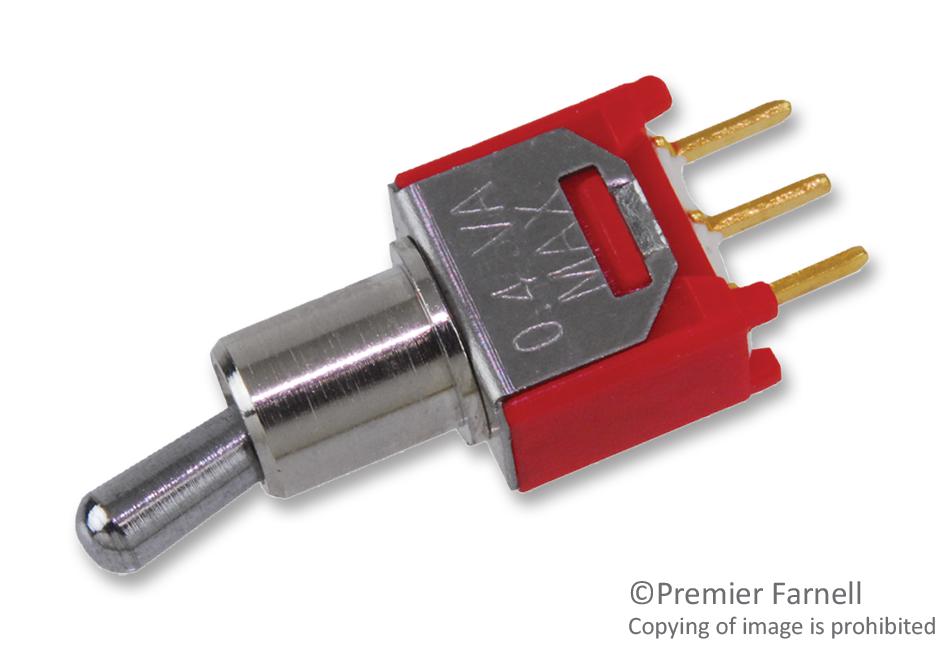

MULTICOMP-PRO 2MS2T2B2M2RE Subminiature Toggle Switch
The 2MS2T2B2M2RE is a compact SPDT toggle switch featuring ON-NONE-MOMENTARY functions with PC through-hole mounting. It has a chrome-plated brass actuator measuring 5.33 inches high and a nickel-plated brass bushing of 5.59 inches. The stainless steel housing ensures durability, supported by tin-plated brass contacts with a 20mΩ contact resistance at 2-4VDC and 100mA. It withstands up to 1000Vrms dielectric strength, with insulation resistance of 1000MΩ, and operates reliably between -30°C to +85°C, making it suitable for industrial and control applications.
MULTICOMP-PRO 2MS2T2B2M2RE Subminiature Toggle Switch Specifications:
- Contact Resistance: 20mΩ at 2-4VDC 100mA
- Mechanical Life: 30,000 cycles
- Insulation Resistance: 1000MΩ
- Dielectric Strength: 1000Vrms at sea level
- Operating Temperature: -30°C to +85°C
- Material: Chrome-plated brass actuator, stainless steel housing, tin-plated brass contacts
- Mounting: PC through-hole
- Switch Function: SPDT, ON-NONE-MOMENTARY
- Contact Plating: Silver or gold plated
- Contact Rating: Dependent upon content material
Buy the Multicomp Series Sub-Miniature Toggle Switch: 2MS2T2B2M2RE
Enhance your control and automation systems with this high-quality subminiature toggle switch. Featuring a durable stainless steel housing, chrome-plated brass actuator, and flexible mounting options, it's designed for demanding industrial environments. With a comprehensive switch function set including ON-NONE-MOMENTARY, it offers reliable operation across a temperature range of -30°C to +85°C. This toggle switch ensures long-term durability, high contact resistance, and excellent dielectric strength, making it the ideal choice for machinery, automation, and electronic control panels.
Buy Multicomp 2MS2T2B2M2RE now and experience unmatched reliability and performance in industrial control applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 2MS2T2B2M2RE?
You can click on the BUY or RFQ button to purchase 2MS2T2B2M2RE from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 2MS2T2B2M2RE?
You can download the 2MS2T2B2M2RE datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 2MS2T2B2M2RE?
MULTICOMP-PRO
