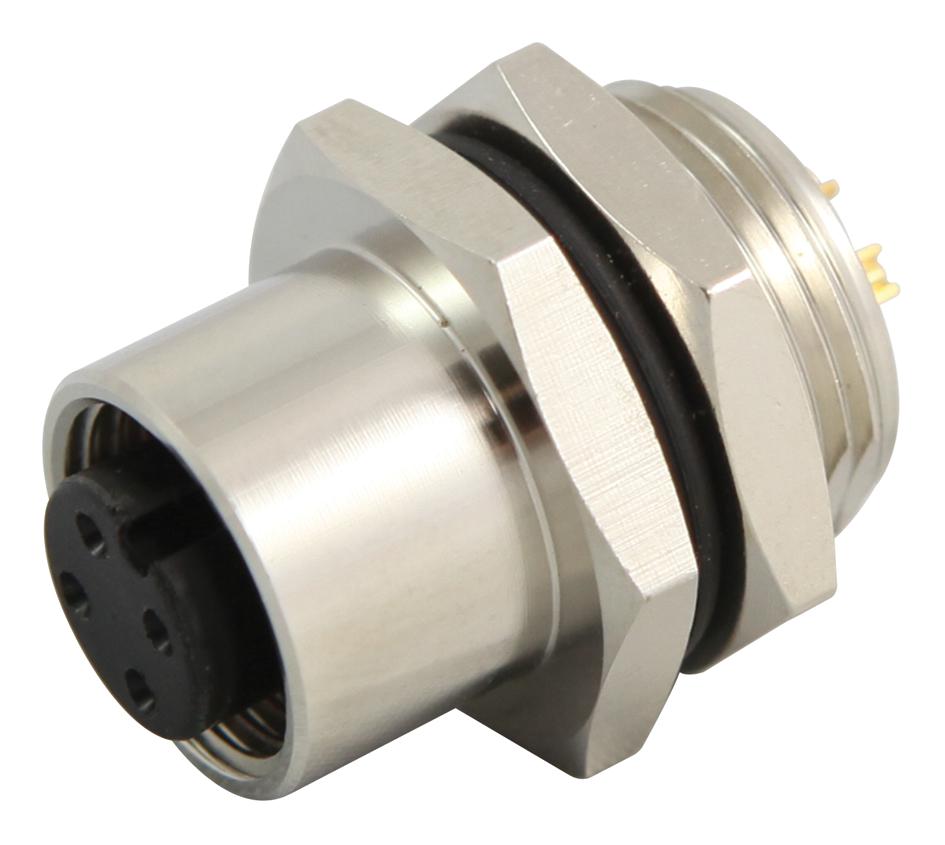

MULTICOMP PRO 2MT3000W04300 Waterproof sensor connector
The M12 series rear mount female connector provides a reliable waterproof connection rated IP68, immersion in 1 meter of water for 24 hours. It features a robust design with a nylon body reinforced with 33% glass fiber, nickel-plated brass nut, and Viton and EPDM O-rings for exceptional sealing. Suitable for industrial automation, sensors, and control systems, it supports a temperature range from -40°C to +100°C and a current rating of 60V AC/DC. Its panel thickness maximum is 3.5 mm, ensuring versatile installation options with excellent durability.
MULTICOMP PRO 2MT3000W04300 Waterproof sensor connector Specifications:
- IP68 waterproof rating, immersed in 1m water for 24 hours
- Temperature Range: -40°C to +100°C
- Current Rating: 60V AC/DC
- Dielectric Withstanding Voltage: 500V AC for one minute
- Panel Thickness: Max 3.5mm
- Material: Nylon + 33% GF body, nickel-plated brass nut, phosphor bronze alloy pins
- Sealing: Viton and EPDM O-rings
- Dimensions: Suitable for panel cut-out 20.78mm to 13.6mm, body diameter approximately 13.6mm
- Connector Type: Rear mount female, multiple positions (3,4,5,8)
Buy the Multicomp Series 2MT3000-W04300 – Reliable Waterproof M12 Connector for Industrial Applications
Discover the multicomp Series waterproof sensor connector, engineered for robust industrial applications. Rated IP68, it withstands immersion in 1 meter of water for 24 hours, ensuring reliable operation in harsh environments. Made with a nylon body reinforced with glass fiber, nickel-plated brass nut, and high-quality sealing O-rings, it supports a temperature range of -40°C to +100°C. Suitable for sensors, automation, and control systems, this connector offers easy installation with maximum panel thickness of 3.5 mm, delivering consistent, durable performance in demanding industrial settings.
Order your multicomp Series 2MT3000-W04300 waterproof M12 connector today and enhance your industrial sensor connections with dependable sealing and durability.
