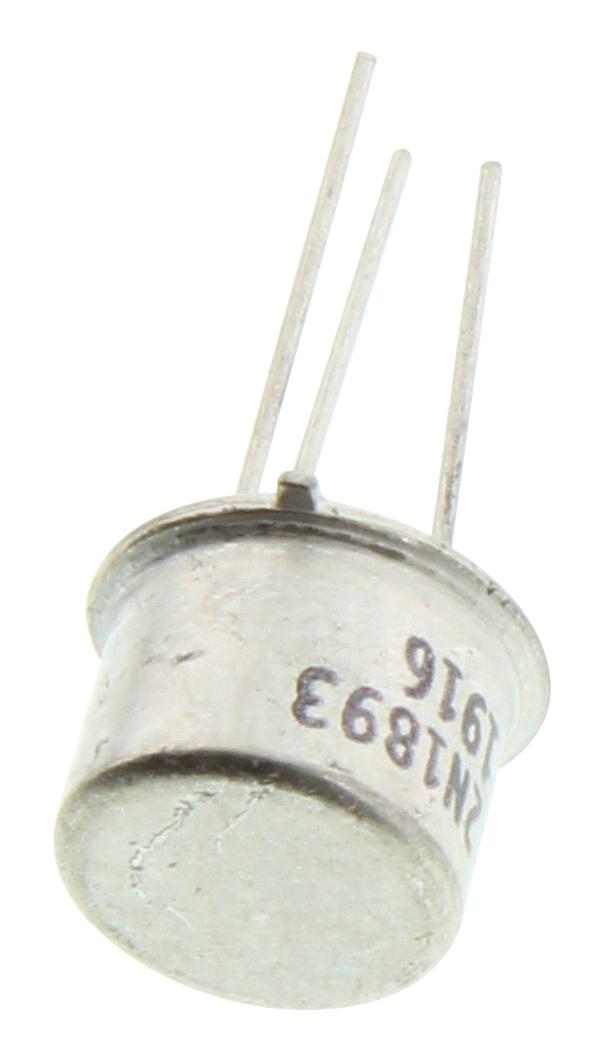

MULTICOMP PRO 2N1893 NPN Silicon Transistor
The 2N1893 is a silicon NPN bipolar junction transistor (BJT) with an 80V breakdown voltage. It is designed primarily for amplifier and switching applications, offering low leakage current, low parasitic capacitance, and a wide current range with high gain (beta). This transistor is suitable for industrial use, providing reliable performance in various electronic circuits.
MULTICOMP PRO 2N1893 NPN Silicon Transistor Specifications:
- Collector Emitter Voltage: 80V
- Collector Emitter Voltage (Reversal): 100V
- Collector Base Voltage: 120V
- Emitter Base Voltage: 7V
- Collector Current: 0.5A
- Total Device Dissipation at 25°C: 0.8W
- Thermal Resistance Junction to Ambient: 219°C/W
- Junction to Case Thermal Resistance: 58.3°C/W
- Collector Emitter Breakdown Voltage: 100V
- Collector Emitter Sustaining Voltage: 80V
- Collector Base Breakdown Voltage: 120V
- Emitter Base Breakdown Voltage: 7V
- DC Current Gain hFE: 20 to 120
- Current Gain Bandwidth Product: 50MHz
- Output Capacitance: 15pF
- Input Capacitance: 85pF
- Package Type: TO-39 metal can
- Operating Temperature Range: -65°C to +200°C
Buy the Multicomp 2N1893 – Reliable NPN Transistor for Industrial Applications
Order the Multicomp 2N1893 transistor online today to ensure your circuit designs benefit from high reliability, efficient switching, and amplification in industrial electronics. With an 80V breakdown voltage and 0.5A current capacity, this transistor is perfect for a variety of applications, including power switching and signal amplification. Its low leakage current and high gain make it an excellent choice for engineers and technicians seeking dependable performance in demanding environments. Purchase now and enhance your device performance effortlessly.
Buy Multicomp 2N1893 now and enhance your electronic projects with reliable switching and amplification performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N1893?
You can click on the BUY or RFQ button to purchase 2N1893 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N1893?
You can download the 2N1893 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N1893?
MULTICOMP PRO
