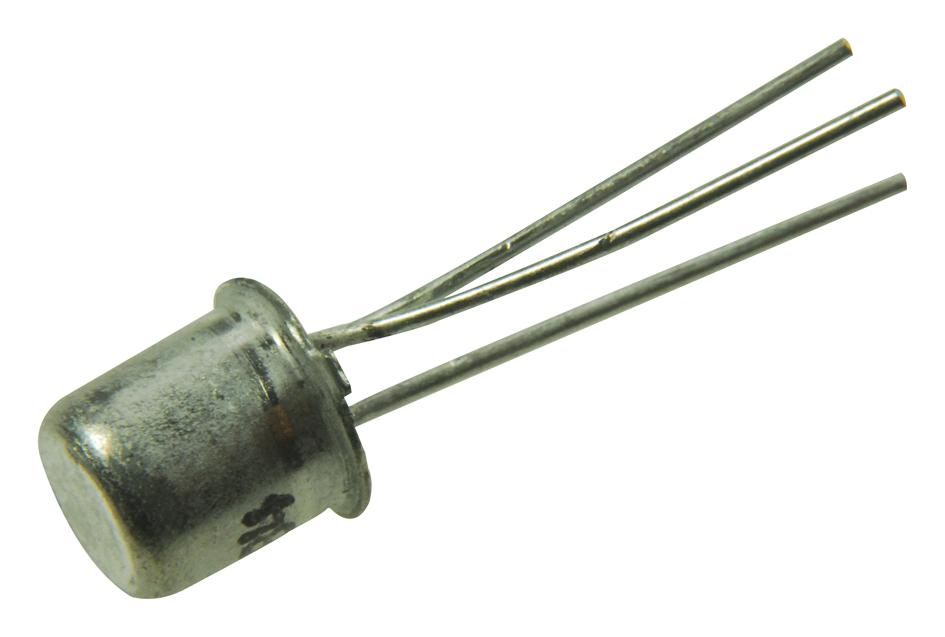

MULTICOMP PRO 2N2484 bipolar transistor
The 2N2484 is a 60V silicon NPN transistor suitable for medium-speed switching and amplification applications, ranging from audio frequencies to VHF. It features industry-standard construction, low collector saturation voltage, and high current gain bandwidth. Multicomp Pro offers this product with a rating of 4.6 out of 5 stars, backed by a 12-month limited warranty. Approximately 96% of customers would recommend it to a friend, making it a reliable choice for industrial applications.
MULTICOMP PRO 2N2484 bipolar transistor Specifications:
- Type: NPN Bipolar Transistor
- Collector-Emitter Voltage: 60V DC
- Collector-Base Voltage: 60V DC
- Emitter-Base Voltage: 6V DC
- Continuous Collector Current: 50mA
- Total Device Dissipation: 360mW at 25°C
- Thermal Resistance, Junction to Ambient: 485°C/W
- Thermal Resistance, Junction to Case: 146°C/W
- Operating Junction Temperature Range: -65°C to +200°C
- Storage Temperature Range: -65°C to +200°C
- Collector-Emitter Breakdown Voltage: 60V
- DC Current Gain (hFE): 175 to 800 (varies with collector current)
- Collector-Emitter Saturation Voltage: 0.25V to 0.35V at 10mA
- Thermal Tolerance and Lead Finish: Gold plate, optional hot solder dip
Buy the Buy Multicomp Pro Bipolar Transistor Part Number 2N2484 Online
Order the Multicomp Pro bipolar transistor 2N2484 online today for dependable switching and amplification in various industrial and audio applications. Featuring a maximum collector-emitter voltage of 60V and a collector current of 50mA, this NPN device delivers high current gain bandwidth and low saturation voltage. Its robust construction makes it suitable for medium-speed switching, with excellent thermal characteristics and a temperature range from -65°C to +200°C. Purchase now to ensure high-performance and reliable operation in your electronic projects.
Buy Multicomp Pro 2N2484 now and experience reliable medium-speed switching and amplification for industrial use.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N2484?
You can click on the BUY or RFQ button to purchase 2N2484 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N2484?
You can download the 2N2484 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N2484?
MULTICOMP PRO
