MULTICOMP PRO 2N3019 Silicon NPN Transistor
The 2N3019 is a silicon NPN transistor with a maximum voltage rating of 80V. It is primarily used in amplifier and switching applications. This transistor features a high breakdown voltage, low leakage current, and low capacitance. Its current gain remains useful over a wide range of currents, making it versatile for various electronic circuits. Designed in a TO-39 case, it is suitable for high-speed switching and amplification. The device operates over a junction temperature of -65°C to +200°C, with precision electrical characteristics suitable for demanding electronic applications.
MULTICOMP PRO 2N3019 Silicon NPN Transistor Specifications:
- Collector-Base Voltage VcBo: 140V
- Collector-Emitter Voltage Vceo: 80V
- Emitter-Base Voltage VEBO: 7V
- Continuous Collector Current Ic: 1A
- Total Device Dissipation: 800mW at 25°C, derates above 25°C at 4.6mW/°C
- Total Device Dissipation: 5W at 25°C, derates above 25°C at 28.6mW/°C
- Operating Junction Temperature: -65°C to +200°C
- Thermal Resistance Junction-to-Case Rthuc: 16.5°C/W
- Thermal Resistance Junction-to-Ambient Rina: 89.5°C/W
- Collector-Base Breakdown Voltage Vcso: 140V
- Collector-Emitter Breakdown Voltage Vcbo: 80V
- Emitter-Base Breakdown Voltage VBEbo: 7V
- Collector-Cut-Off Current IcBo: 10 pA at 150°C
- Input Capacitance Ciro: 60 pF at 1MHz
- Output Capacitance Covo: 12 pF at 1MHz
- Current Gain hFE: 50 at 500mA, 15 at 1A
- Saturation Voltage VCE(sat): 0.5V at 150mA
- Transition Time rb'Cc: 400 ps at 10mA

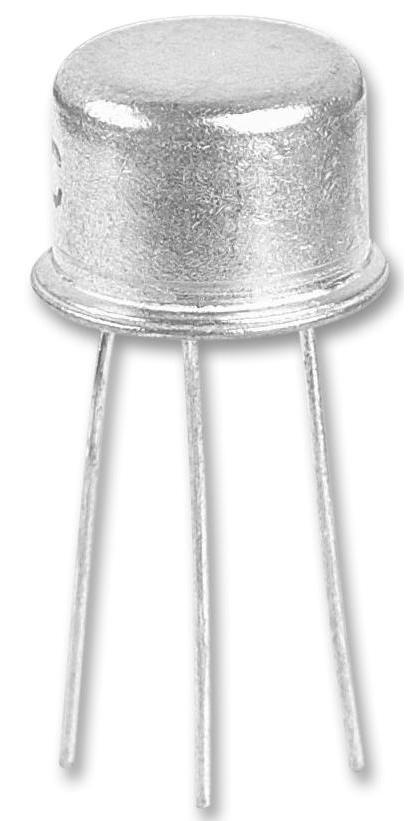

Buy the Buy Multicomp Transistor Part Number 2N3019 Online
Enhance your electronic projects with the high-performance silicon NPN transistor in a TO-39 case. Designed for amplifiers and switching, it offers high voltage, low leakage, and wide current range. The 2N3019 features a maximum voltage of 80V, high gain, and low capacitance, making it ideal for demanding circuits requiring precise switching and amplification. Its operating temperature range from -65°C to +200°C ensures durability and reliability across various environments. Purchase online today for reliable, high-quality performance for your electronic needs.
Buy Multicomp 2N3019 now and experience unmatched reliability and performance in amplifier and switching applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N3019?
You can click on the BUY or RFQ button to purchase 2N3019 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N3019?
You can download the 2N3019 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N3019?
MULTICOMP PRO
