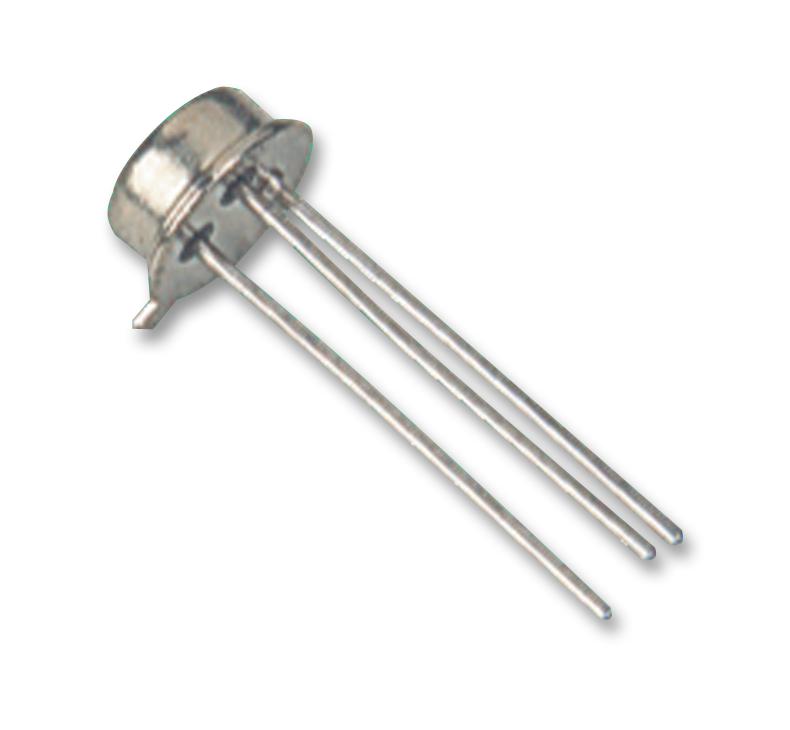

MULTICOMP PRO 2N3053 NPN Transistor
The 2N3053 is an NPN silicon transistor primarily used for amplifier and switching applications. It features a high breakdown voltage, low leakage current, and low capacitance, making it suitable for a wide range of current levels. Designed for reliable performance, this transistor is ideal for audio and signal processing applications. It has a junction-to-case thermal resistance of 35°C/W and is supported by Multicomp Pro's rated quality, with a 12-month limited warranty. Customer satisfaction is high, with 96% recommending it to others.
MULTICOMP PRO 2N3053 NPN Transistor Specifications:
- Collector-Base Voltage VcBo: 60V
- Collector-Emitter Voltage Vceo: 40V
- Emitter-Base Voltage VEBO: 5V
- Continuous Collector Current Ic: 0.7A
- Total Device Dissipation Po: 800mW
- Operating Junction Temperature Range Ts: -65°C to +200°C
- Storage Temperature Range Tsts: -65°C to +200°C
- Thermal Resistance, Junction-to-Case Rinsc: 35°C/W
- Lead Temperature During Soldering: 300°C for 60 sec max
- Collector-Emitter Breakdown Voltage V(BR)ceo: 40V to 60V
- Emitter-Base Breakdown Voltage V(BR)eBo: 5V
- Collector-Base Breakdown Voltage VcB: 60V
- On-State Collector-Emitter Saturation Voltage Vce(sat): 1.4V
- Base-Emitter Saturation Voltage VBE(sat): 1.7V
- Current Gain-Bandwidth Product fT: 100 to 400 MHz
- Output Capacitance Cvo: 12 pF
- Input Capacitance Cpi: 60 pF
Buy the Multicomp Series transistor: NPN amplifier switch: 2N3053
Purchase the NPN Transistor for versatile amplifier and switching applications online today. This high-quality component guarantees high breakdown voltage, low leakage current, and low capacitance, ensuring reliable performance across a wide range of current levels. Its compact design and thermal stability make it suitable for audio and signal processing systems, providing efficient operation and durability. Shop now to benefit from fast delivery and competitive prices, and equip your projects with trusted components that deliver consistent results.
Buy Multicomp 2N3053 now and experience unmatched reliability and performance in your amplifier and switching projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N3053?
You can click on the BUY or RFQ button to purchase 2N3053 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N3053?
You can download the 2N3053 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N3053?
MULTICOMP PRO
