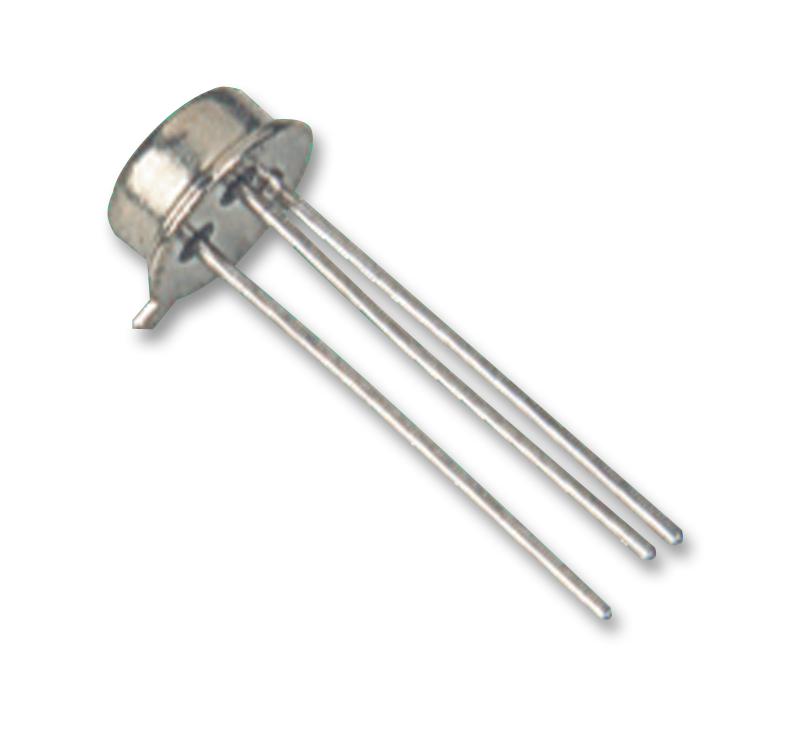

MULTICOMP PRO 2N3053A power transistor
The 2N3053A is an NPN silicon bipolar transistor designed for amplifier and switching applications. It features high breakdown voltage, low leakage current, low capacitance, and high current gain, suitable for wide current ranges. Operating from -65°C to 150°C, this TO-39 package transistor is ideal for power management and industrial electronics. Its robust specifications include a collector-base voltage of 80V, collector-emitter voltage of 60V, and a continuous collector current of 0.7A. Designed for reliability, it excels in demanding electrical environments, making it a preferred choice in various industrial and electronic device applications.
MULTICOMP PRO 2N3053A power transistor Specifications:
- Package: TO-39
- Collector-Base Voltage: 80V
- Collector-Emitter Voltage: 60V
- Emitter-Base Voltage: 5V
- Continuous Collector Current: 0.7A
- Total Device Dissipation: 800mW at 25°C
- Operating Junction Temperature Range: -65°C to 150°C
- Storage Temperature Range: -65°C to +200°C
- Collector-Emitter Breakdown Voltage: 60V min, 80V max
- Collector-Base Breakdown Voltage: 80V max
- Emitter-Base Breakdown Voltage: 5V max
- DC Current Gain hFE: 80 min at 10V, 150mA
- Collector-Emitter Saturation Voltage: 1.4V max at 150mA
- Base-Emitter Saturation Voltage: 1V max at 150mA
- Current Gain-Bandwidth Product: 100 MHz
- Output Capacitance: 12 pF
- Input Capacitance: 80 pF
- Dimensions: Length approximately 8.5–9.4mm, width approximately 7.74–8.5mm, height approximately 6.09–6.6mm
Buy the Multicomp 2N3053A – Reliable Power Transistor for Industrial Applications
Enhance your electronic projects with the reliable 2N3053A NPN power transistor. Perfect for industrial electronics, switching, and amplification, it offers high voltage ratings up to 80V and a continuous current of 0.7A. Its robust TO-39 package ensures durability, while its specifications deliver excellent performance in demanding environments. Easily purchase online and enjoy guaranteed quality, fast shipping, and exceptional support. Improve your power management and signal amplification with this high-performance transistor tailored for industrial and electronic applications.
Buy Multicomp 2N3053A now and experience unmatched reliability and high performance in power management and switching tasks.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N3053A?
You can click on the BUY or RFQ button to purchase 2N3053A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N3053A?
You can download the 2N3053A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N3053A?
MULTICOMP PRO
