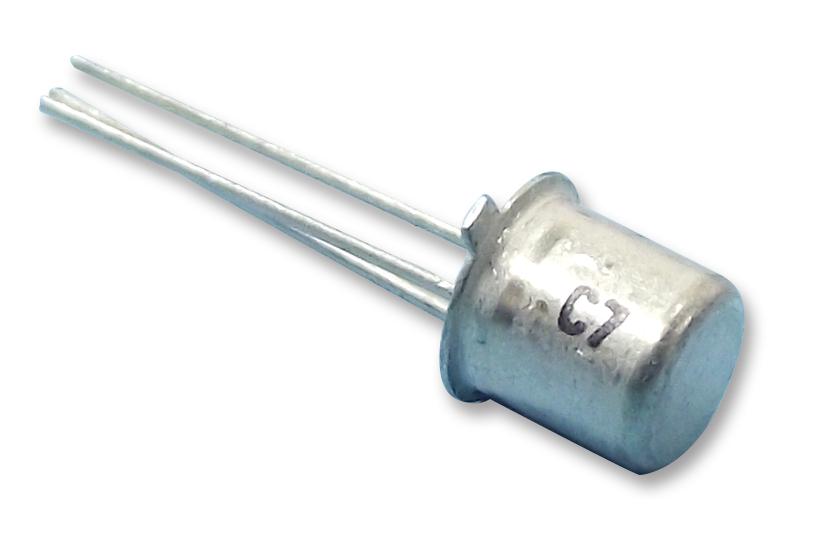

MULTICOMP PRO 2N3251A Power Transistor
The 2N3251A is a PNP silicon planar epitaxial power transistor housed in a JEDEC metal case. It is suitable for switching and amplifier applications, with an operating junction temperature range of -55°C to 150°C. This component is commonly used in power management and industrial applications, offering a maximum collector-emitter voltage of 60V, a collector current of 0.2A, and a total device dissipation of 1.2W. Its pin configuration includes emitter, base, and collector, making it ideal for various amplification and switching tasks.
MULTICOMP PRO 2N3251A Power Transistor Specifications:
- Collector-Base Voltage: 60V
- Collector-Emitter Voltage: 60V
- Emitter-Base Voltage: 5V
- Continuous Collector Current: 0.2A
- Total Device Dissipation: 1.2W
- Operating Junction Temperature Range: -55°C to 150°C
- Thermal Resistance, Junction-to-Case: 146 °C/W
- Thermal Resistance, Junction-to-Ambient: 486 °C/W
- Pin Configuration: 1. Emitter, 2. Base, 3. Collector
- Dimensions: A=0.91mm, B=0.71mm, C=12.7mm, D=45°, E=45°, with other dimensions provided in millimeters
Buy the Buy Multicomp Power Transistor Part Number 2N3251A Online
Enhance your electronic projects with the power and reliability of the Multicomp Power Transistor 2N3251A. Designed for switching and amplification, this PNP silicon power transistor offers a maximum collector-emitter voltage of 60V and a collector current of 0.2A. Suitable for industrial and power management applications, it features a JEDEC metal case, excellent thermal resistance, and a broad operating temperature range from -55°C to 150°C. Purchase online today for dependable performance in your electronic and industrial projects.
Order your Multicomp Series 2N3251A power transistor today and enhance your power management solutions with reliable switching and amplification performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N3251A?
You can click on the BUY or RFQ button to purchase 2N3251A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N3251A?
You can download the 2N3251A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N3251A?
MULTICOMP PRO
