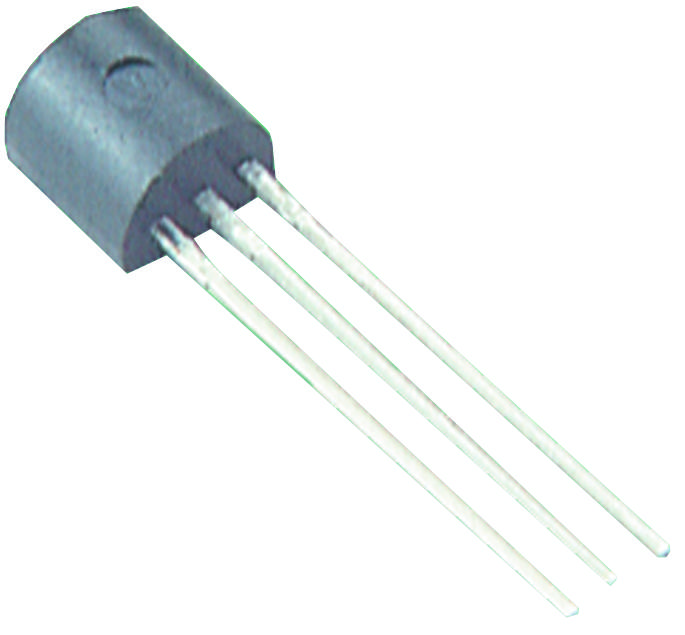

MULTICOMP PRO 2N3705 NPN Silicon Transistor
The MULTICOMP PRO 2N3705 is a versatile NPN silicon planar epitaxial transistor designed for a wide range of applications including general-purpose amplification, switching, and voltage regulation. It offers a maximum collector-emitter voltage of 30V and a continuous collector current of 600mA, with a power dissipation of 625mW. The transistor's characteristics, such as DC current gain and saturation voltage, make it suitable for use in various electronic circuits, from consumer electronics to industrial control systems. Its TO-92 package allows for easy mounting and integration into different circuit designs. The 2N3705 is a reliable and cost-effective solution for many electronic design needs.
MULTICOMP PRO 2N3705 NPN Silicon Transistor Specifications:
- Collector-Emitter Voltage: 30 V
- Collector-Base Voltage: 50 V
- Emitter Base Voltage: 5 V
- Collector Current Continuous: 600 mA
- Power Dissipation at Ta= 25°C: 625 mW
- Power Dissipation Derate Above 25°C: 5 mW/°C
- Operating and Storage Junction Temperature Range: -55 to +150 °C
- Junction to Ambient Thermal Resistance: 200 °C/W
- Collector Emitter Voltage (Pulse): 30 V
- Collector Base Voltage (Pulse): 50 V
- Emitter to Base Voltage (Pulse): 5 V
- DC Current Gain (hFE): 100-300
- Collector Leakage Current: ≤ 0.1 µA
- Emitter Leakage Current: ≤ µA
- Collector Emitter Saturation Voltage: 0.6-0.8 V
- Base Emitter On Voltage: 0.5-1.0 V
- Output Capacitance: ≤ 12 pF
- Transition Frequency: ≥ 100 MHz
- Package: TO-92
