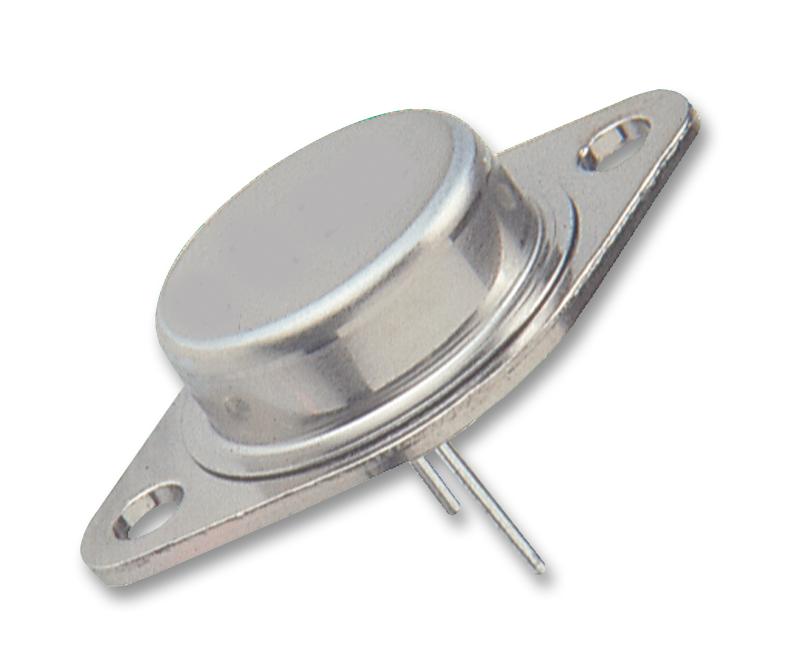

MULTICOMP PRO 2N3772 Silicon Power Transistor
The MULTICOMP PRO 2N3772 is a high-power silicon NPN power transistor suitable for a wide range of applications including linear amplifiers, series pass regulators, and inductive switching circuits. It is characterized by its high voltage and current handling capabilities, making it ideal for demanding industrial environments. The transistor's TO-3 package provides excellent thermal dissipation, ensuring reliable operation even under high power conditions. Its robust design and performance characteristics make it a valuable component for power control and amplification systems.
MULTICOMP PRO 2N3772 Silicon Power Transistor Specifications:
- VCEO: 60 V DC
- VCEX: 80 V DC
- VCB: 100 V DC
- VEB: 7 V DC
- IC: 20 A DC (Continuous)
- IC_Peak: 30 A DC
- IB: 5 A DC (Continuous)
- IB_Peak: 15 A DC
- PD: 150 W
- PD_Derate: 0.855 W/°C
- TJ_Tstg: -65°C to +200°C
- j-c: 1.17 °C/W
- VCEO(sus): 40-60 V DC
- VCEX(sus): 50-80 V DC
- VCER(sus): 45-70 V DC
- ICEO: ≤ 10 mA DC
- lCEV: ≤ 2-10 mA DC
- lCBO: ≤ 2-5 mA DC
- lEBO: ≤ 5 mA DC
- hFE: 15-60
- VCE(sat): 2-4 V DC
- VBE(on): 2.2-2.7 V DC
- fT: 0.2 MHz
- hfe_dynamic: 40
- Is/b: 2.75 A DC
