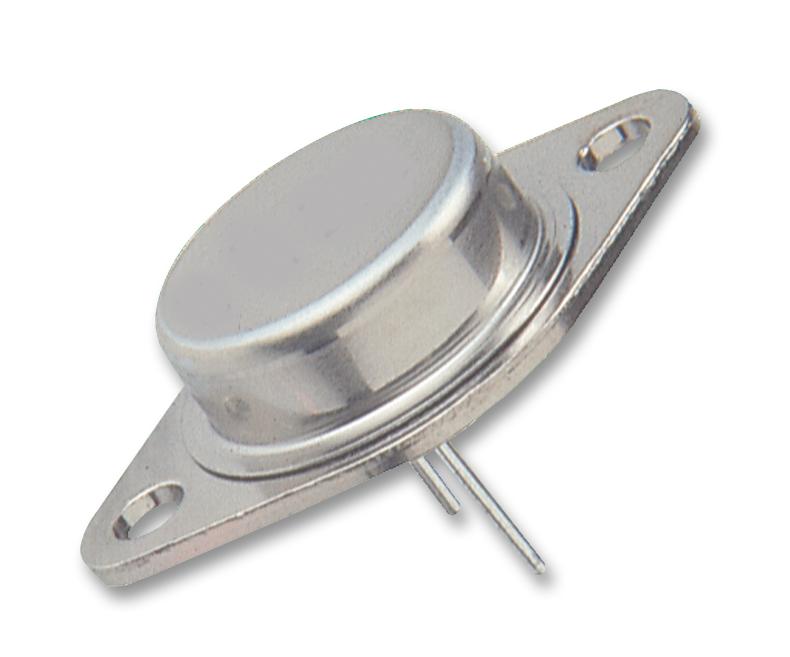

MULTICOMP PRO 2N3792 Silicon PNP Power Transistor
The MULTICOMP PRO 2N3792 is a silicon PNP power transistor packaged in a TO-3 format. It's engineered for medium-speed switching and amplifier applications, offering excellent safe operating areas. With a continuous collector current of 10A and a total device dissipation of 150W, this transistor is well-suited for demanding industrial environments. Its robust design and reliable performance make it a valuable component in power supply circuits, motor control systems, and various amplifier stages.
MULTICOMP PRO 2N3792 Silicon PNP Power Transistor Specifications:
- hfe_min: 25 @ Ic = 1A
- hfe_max: 50 @ Ic = 1A
- Vcbo: 80V
- Vceo: 80V
- Vebo: 7V
- Ic: 10A
- Ib: 4A
- Pd: 150W
- Tj: -65°C to +200°C
- Vbrceo_pulse: 80V
- Icev: 1mA
- Iebo: 5mA
- Vce_sat: 1V
- Vbe_on: 1.8V
- ft: 4MHz
- Package: TO-3
- Transistor_Type: PNP
- Dimensions_A: 38.75-39.96mm
- Dimensions_B: 19.28-22.23mm
- Dimensions_C: 7.96-9.23mm
- Dimensions_D: 11.18-12.19mm
- Dimensions_E: 25.2-26.67mm
- Dimensions_F: 0.92-1.09mm
- Dimensions_G: 1.38-1.62mm
- Dimensions_H: 29.9-30.4mm
- Dimensions_I: 16.64-17.3mm
- Dimensions_J: 3.88-4.36mm
- Dimensions_K: 10.67-11.18mm
