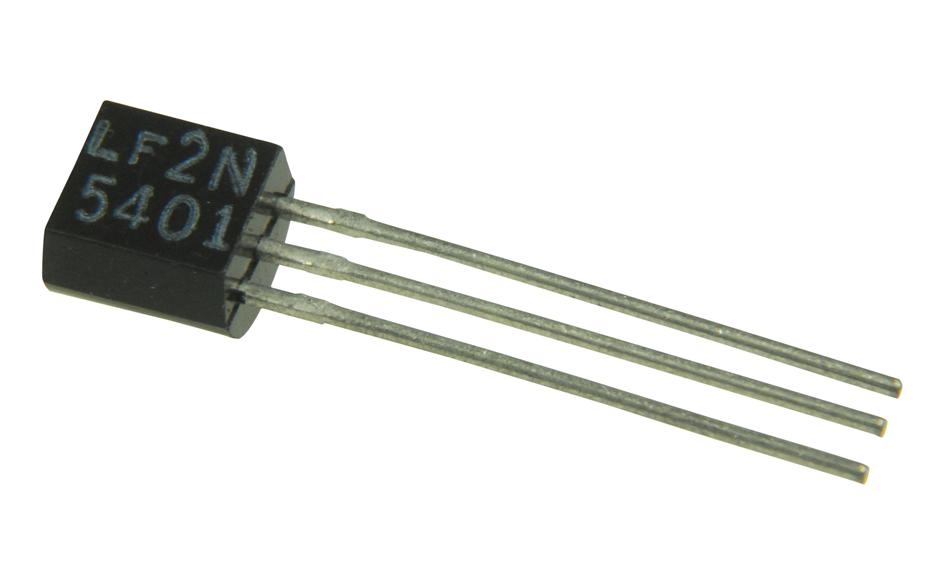

MULTICOMP PRO 2N5401 High Voltage PNP Transistor
The 2N5401 is a PNP amplifier transistor with a collector-emitter voltage of 150V and a collector dissipation of 625mW. It features internal thermal shutdown and current limiting, making it highly rugged and reliable. The device requires no external components for most applications, making it ideal for on-card regulation or other uses requiring a regulated negative voltage at moderate current levels. It offers advantages over resistor or Zener diode approaches, providing simplified design and improved protection. Suitable for audio and general amplification applications.
MULTICOMP PRO 2N5401 High Voltage PNP Transistor Specifications:
- Collector-Emitter Voltage: 150 V
- Collector-Base Voltage: 160 V
- Emitter-Base Voltage: 5 V
- Collector Current Continuous: 600 mA
- Power Dissipation at Ta=25°C: 625 mW
- Power Dissipation at Tc=25°C: 1.5 W
- Operating Temperature Range: -55 to +150 °C
- Thermal Resistance Junction to Case: 83.3 °C/W
- Thermal Resistance Junction to Ambient: 200 °C/W
- DC Current Gain hFE: 60 - 240
- Transition Frequency ft: 100 - 300 MHz
- Output Capacitance: 6 pF
- Package: TO-92 Plastic Package
- Dimensions (mm): 4.32-5.33 (A), 4.45-5.2 (B), 3.18-4.19 (C), 0.41-0.55 (D), 0.35-0.5 (E), 1.14-1.53 (H)
Buy the Buy Industrial Equipment 2N5401 Part Number 2N5401 Online
Order the 2N5401 PNP high voltage transistor online today for dependable performance in regulation, amplification, and general electronics. Designed for moderate current applications, it offers excellent thermal stability and ruggedness. Its internal protections such as thermal shutdown and current limiting ensure reliable operation in various environments. Perfect for audio, on-card regulation, and switching circuits, this transistor provides simplified design integration. Purchase now for quick delivery and enhance your electronic projects with a proven, efficient, and versatile component.
Get 2N5401 high voltage transistor today—built for reliable amplification and robust operation in regulation and audio applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N5401?
You can click on the BUY or RFQ button to purchase 2N5401 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N5401?
You can download the 2N5401 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N5401?
MULTICOMP PRO
