MULTICOMP PRO 2N6547 NPN Power Transistor
The 2N6547 is an NPN power transistor designed for high voltage and high-speed switching in inductive circuits, where fast fall times are essential. It is especially suitable for switch mode power supplies operating at 115V and 220V. The transistor features high-temperature performance and an emitter-base voltage rating of 9V. Typically used in industrial applications such as motor drive and control systems.
MULTICOMP PRO 2N6547 NPN Power Transistor Specifications:
- Collector-Emitter Voltage Vceo: 400 V
- Collector-Emitter Voltage Vcex: 450 V
- Collector-Emitter Voltage Veev: 850 V
- Emitter-Base Voltage Ves: 9 V
- Collector Current - Continuous Io: 15 A
- Collector Current - Peak: 30 A
- Base Current - Continuous Ip: 10 A
- Base Current - Peak Iep: 20 A
- Emitter Current - Continuous Ie: 25 A
- Emitter Current - Peak Iep: 35 A
- Total Power Dissipation: 175 W at 25°C, derates above 25°C
- Operating Junction Temperature Range: -65°C to +200°C
- Thermal Resistance Junction to Case: 1 °C/W
- Max. Lead Soldering Temperature: 275°C for 5 seconds
- Dimensions: Refer to datasheet (approximate length 1.55 inches), Pin configuration includes base, emitter, collector case

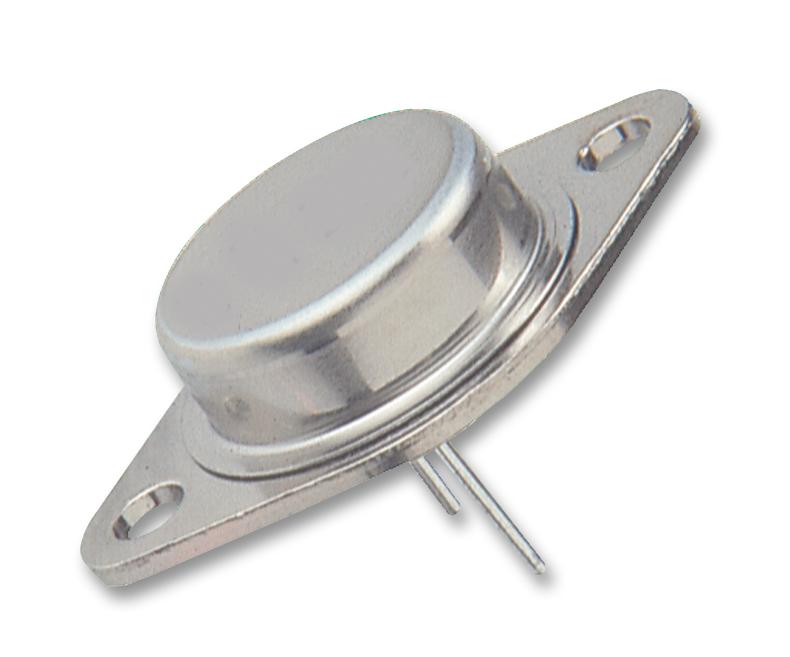

Buy the Multicomp Series TO-3 NPN Power Transistor: 2N6547
Purchase the NPN Power Transistor suitable for high voltage, high-speed switching in inductive circuits with fast fall times. Ideal for switch mode power supplies, motor controls, and industrial automation, offering high-temperature performance and robust ratings. Designed to operate efficiently in demanding environments, ensuring durability and consistent performance. Easily available online for quick procurement, this transistor supports reliable power switching with a maximum collector-emitter voltage of up to 450V, collector current of 15A, and power dissipation of 175W at 25°C, ensuring optimal industrial control operations.
Get Multicomp Series TO-3 NPN Power Transistor 2N6547 today—built for high-voltage switching, high-speed performance, and reliable industrial operation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N6547?
You can click on the BUY or RFQ button to purchase 2N6547 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N6547?
You can download the 2N6547 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N6547?
MULTICOMP PRO
