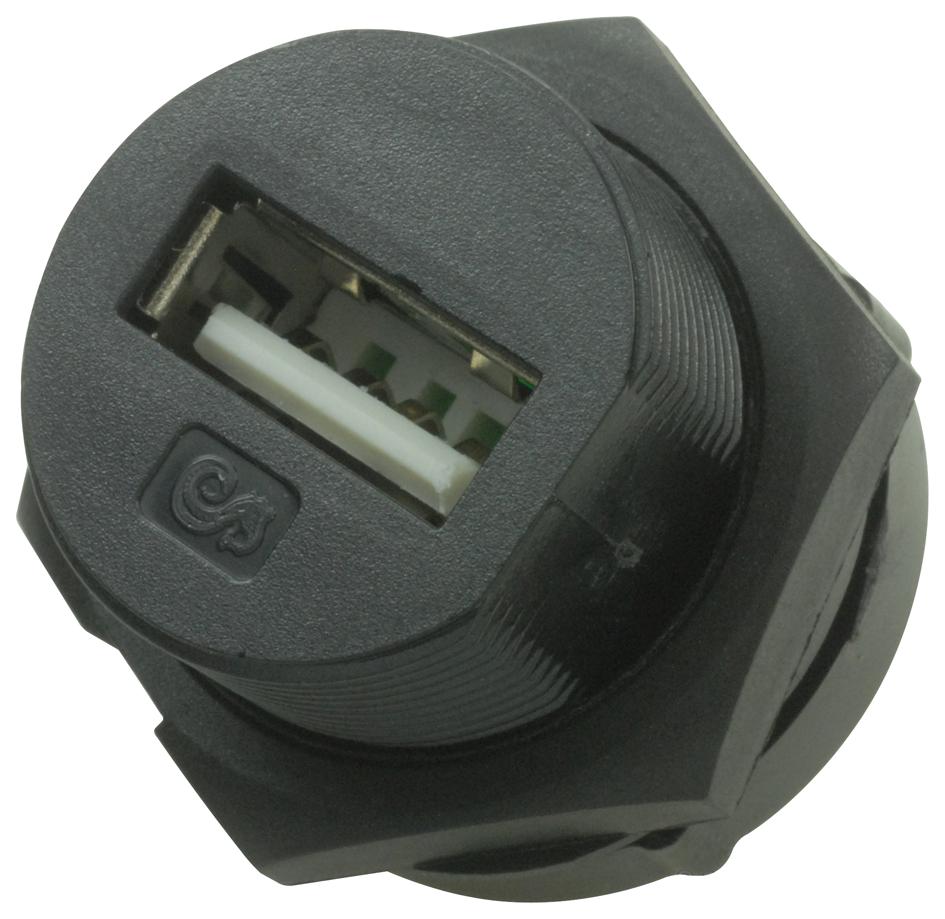

MULTICOMP PRO 2UB3001W05100 Waterproof USB Jack
The 2UB3001-W05100 is a four-pin waterproof USB 2.0 jack designed for reliable connections in demanding environments. Featuring an IP67 rating, it withstands immersion in 1 meter water for 30 minutes and is constructed with a black PPE housing and a durable EPDM O-ring for sealing. With a rated voltage of 30V and current of 1A, it offers low contact resistance of 30 micro-ohms and withstands 500VAC dielectric voltage. Its compact design is suitable for through-hole mounting in computers, networking, and communication equipment, ensuring secure and waterproof data transfer points.
MULTICOMP PRO 2UB3001W05100 Waterproof USB Jack Specifications:
- Waterproof Rate: IP67, immersed in 1 meter water for 30 minutes
- Electrical Rating: 30V, 1A
- Max. Contact Resistance: 30 micro-ohms
- Dielectric Withstanding Voltage: 500V AC for one minute
- Insulation Resistance: minimum 100 Megaohms at 500V DC
- Housing Material: PPE Black
- Sealing Material: EPDM O-ring
- Number of Pins: 4
- Pin Pitch: 2.54 mm
- Mounting Type: Panel through-hole, vertical
- Maximum Panel Thickness: 4 mm
- Operating Temperature: Not specified but designed for rugged environments
- Dimensions: Compatible with standard IP67 panel cut-out specifications
- Certification: IP67 waterproof rating
Buy the Buy Multicomp Pro Waterproof USB 2.0 Jack Part Number 2UB3001W05100 Online
Order the Multicomp Pro Waterproof USB Jack now and enjoy secure, waterproof data transfer in outdoor or harsh environments. This rugged USB receptacle featuring an IP67 rating is perfect for computers, networking, and communication devices. Its sealed design with a black PPE housing and EPDM O-ring ensures protection against water and dust ingress, suitable for outdoor applications or industrial settings. Ensure your devices remain protected and maintain reliable connectivity with this durable, high-quality waterproof USB connector available for quick online purchase today.
Buy Multicomp Pro 2UB3001W05100 waterproof USB jack now and experience secure, reliable waterproof connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2UB3001W05100?
You can click on the BUY or RFQ button to purchase 2UB3001W05100 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2UB3001W05100?
You can download the 2UB3001W05100 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2UB3001W05100?
MULTICOMP PRO
