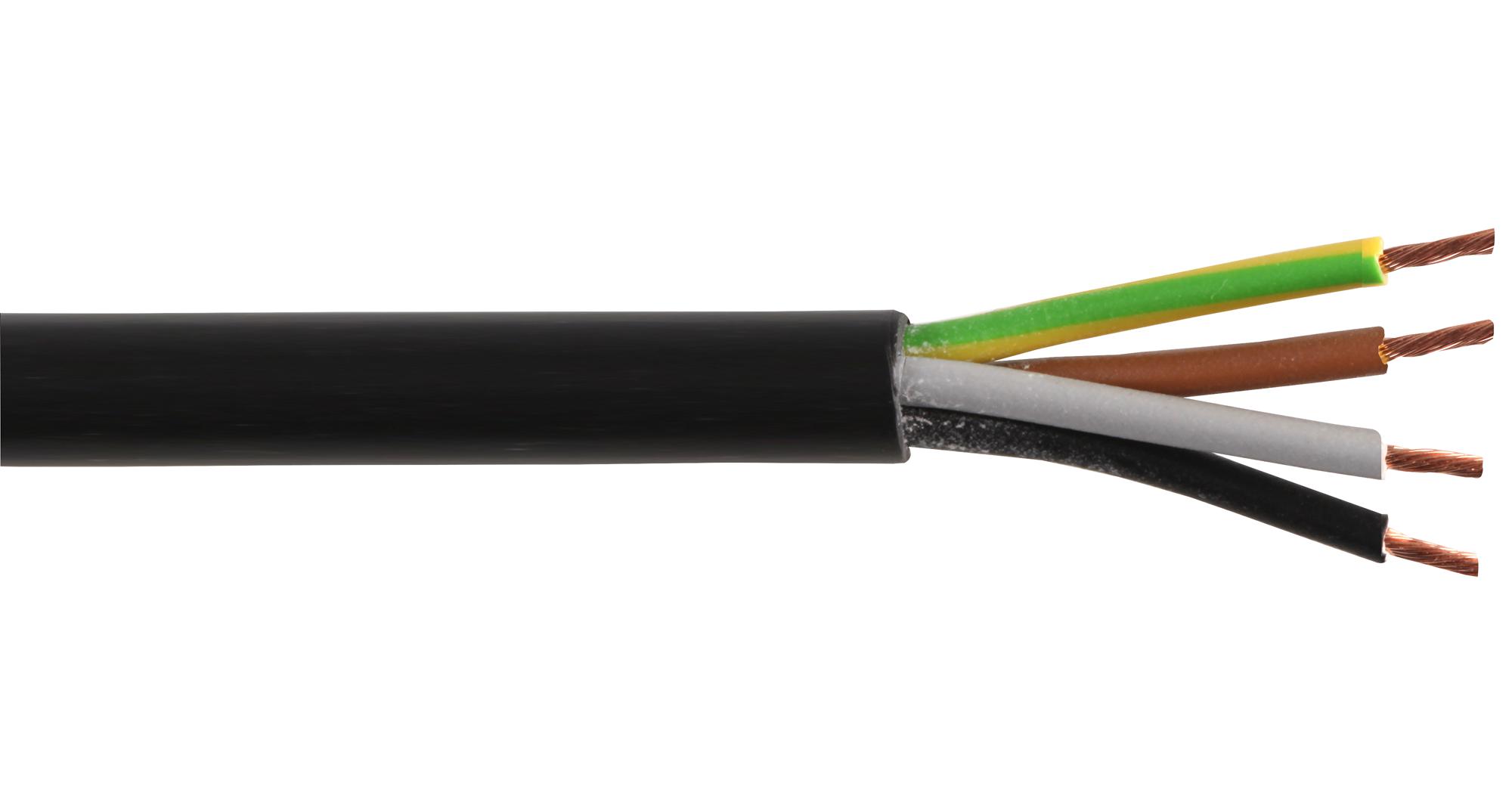

MULTICOMP-PRO 3184Y1MMBLK PVC Insulated Mains Cable
The MULTICOMP PRO 3184Y series PVC insulated mains cable is a versatile solution for power supply applications in indoor environments. Constructed with plain annealed copper wire, PVC insulation, and a durable PVC sheath, this cable provides reliable performance and safety. Its flexible design and color-coded insulation (grey, brown, black, and yellow/green stripe) make it easy to identify and install. Suitable for small electrical instruments and portable tools, the 3184Y cable is a cost-effective choice for a wide range of applications.
MULTICOMP-PRO 3184Y1MMBLK PVC Insulated Mains Cable Specifications:
- Insulation Material: PVC
- Sheath Colour: Black
- Voltage Test: 1,500V AC / 1min
- Voltage Rating: 300/500V
- Operating Temperature: -15°C to +70°C
- Inner Diameter: 2.5mm
- Outer Diameter: 6.4mm
- Min. Bend Radius: 64mm
- Nominal DC Resistance: 19.5Ω/km
- Current Rating: 10A
- Stranding: 32/0.2mm
- CSA: 1mm2
Buy the 3184Y-1MMBLK MULTICOMP PRO PVC Insulated Mains Cable | myMectronic
Purchase the MULTICOMP PRO 3184Y-1MMBLK cable securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 3184Y1MMBLK?
You can click on the BUY or RFQ button to purchase 3184Y1MMBLK from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 3184Y1MMBLK?
You can download the 3184Y1MMBLK datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 3184Y1MMBLK?
MULTICOMP-PRO
