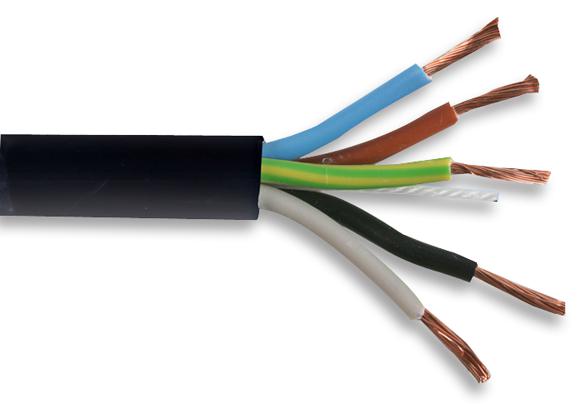

MULTICOMP PRO 3185Y1MMBLK100M PVC Insulated Mains Cable
The MULTICOMP PRO 3185Y-1MMBLK100M is a PVC insulated mains cable designed for a variety of power supply applications. Constructed with plain annealed copper wire, PVC insulation, and a PVC sheath, this cable offers reliable performance in small electrical instruments and portable tools. Its flexible design and robust construction make it suitable for indoor use, while its voltage rating of 300/500V ensures safe operation. The cable's operating temperature range of -15°C to +70°C allows for use in diverse environments. It is commonly used in power supplies, lighting systems, and other low-voltage applications where a durable and flexible cable is required.
MULTICOMP PRO 3185Y1MMBLK100M PVC Insulated Mains Cable Specifications:
- Type: 3185Y
- CSA: 0.75mm2
- Stranding: 24/0.2mm
- Inner Diameter: 2.3mm
- Outer Diameter: 8.4mm
- Min Bend Radius: 84mm
- Nominal DC Resistance: 26Ω/km
- Current Rating: 6A
- Insulation Material: PVC
- Sheath Material: PVC
- Insulation Colour: Blue, Brown, Yellow/Green Stripe
- Sheath Colour: Black
- Voltage Test: 1,500V AC / 1min
- Voltage Rating: 300/500V
- Operating Temperature: -15°C to +70°C
- Filler Material: PVC
