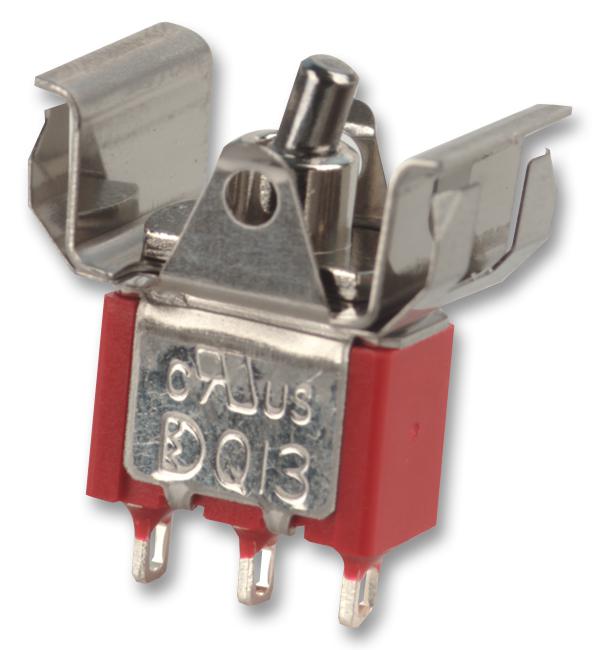

MULTICOMP PRO 3MS1M1QE Rocker Switch
Multicomp Pro rocker and paddle switches are high-quality, durable electrical components suitable for various industrial and automation applications. They feature a compact design with multiple switch functions, including SPDT and DPDT configurations, supporting resistive loads at 120V AC or 28V DC, and capable of 2A resistive load at 250 V AC. With a mechanical life of 50,000 cycles, they are constructed from reliable materials such as nylon, brass, stainless steel, and epoxy. These switches are RoHS compliant and designed for panel mounting with various actuator and termination options, ensuring versatile installation and long-lasting performance in demanding environments.
MULTICOMP PRO 3MS1M1QE Rocker Switch Specifications:
- Contact Rating: 2A resistive load at 250 V AC, 120V AC or 28V DC
- Mechanical Life: 50,000 make-and-break cycles
- Max. Contact Resistance: 10m initial at 2 to 4V DC 100mA
- Min. Insulation Resistance: 1,000 MO
- Dielectric Strength: 1,000 Vrms at sea level
- Operating Temperature: -30°C to 85°C
- Materials: Case - Diallyl phthalate, Actuator - Nylon, Bushing - Brass, nickel plated, Housing - Stainless steel, Switch Support - Brass, tin-plated, Terminal/Contact - Brass with silver plated
- Dimensions: Varies with model, typical actuator length approx. 13.49 mm (0.531 inch), mounting hole dia. 2.03 mm (0.08 inch)
- Solder Lug Termination: 1.98 mm (0.078 inch) thickness 0.76 mm (0.030 inch)
- Soldering Process: Manual soldering with 30W iron at 350°C for 5 seconds, wave and vapor phase soldering with peak temp 260°C, detailed temperature profiles provided
- Switch Configuration Options: SPDT, DPDT, MOM Off-Mom, On-Off-On, On-None-On with multiple poles and actuator types
Buy the Multicomp Series Rocker Switch: 3MS1
Order the Multicomp Series Rocker Switch 3MS1 now from trusted online sources. Designed for industrial control and automation, this switch offers durability, reliable switching, and easy installation. Whether replacing an existing switch or integrating into new systems, this product provides excellent value with high load capacity, multiple configurations, and RoHS compliance. Enjoy quick delivery and professional support to ensure your projects stay on schedule. Purchase today and experience the quality and versatility of Multicomp industrial switches.
Get Multicomp Series Rocker Switch 3MS1 today—built for robust performance and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 3MS1M1QE?
You can click on the BUY or RFQ button to purchase 3MS1M1QE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 3MS1M1QE?
You can download the 3MS1M1QE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 3MS1M1QE?
MULTICOMP PRO
