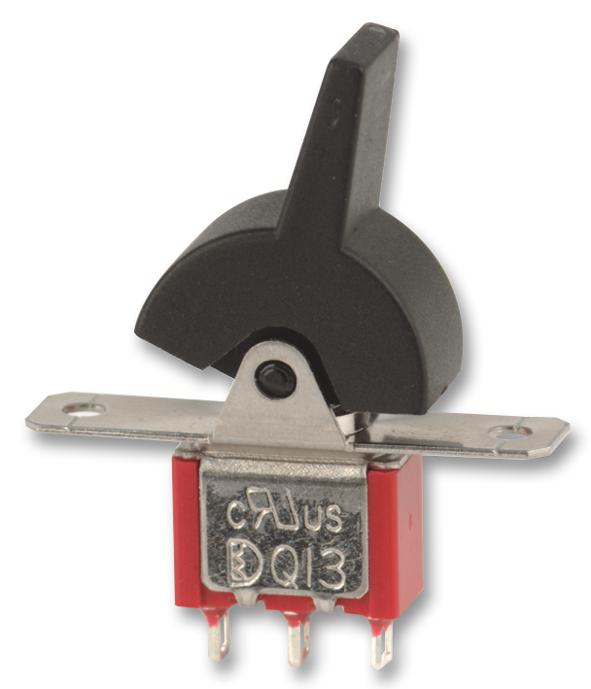

MULTICOMP-PRO 3MS1R2M1QE Industrial Switch
This rocker and paddle switch offers reliable SPDT and DPDT configurations for industrial control and automation. With a durable design, it features silver contacts rated for 2A resistance at 120V AC or 28V DC, and a mechanical life of 50,000 cycles. Made from high-quality materials including nylon housing, brass contact support, and epoxy seals, it withstands temperatures from -30°C to 85°C. Ideal for panel mounting, it supports solder lug terminations and offers various actuator options for diverse industrial applications. Certification includes RoHS compliance, ensuring environmentally responsible use.
MULTICOMP-PRO 3MS1R2M1QE Industrial Switch Specifications:
- Contact Rating: 2A resistance load at 120V AC or 28V DC, 50,000 cycles
- Materials: Case - Diallyl phthalate, Housing - Nylon, Contact Support - Brass, Seal - Epoxy
- Max. Contact Resistance: 10mΩ initial at 2 to 4V DC 100mA
- Insulation Resistance: 1,000 MΩ
- Dielectric Strength: 1,000 Vrms at sea level
- Operating Temperature: -30°C to 85°C
- Dimensions: Length varies with model, typical actuator diameter 6.23mm, panel thickness 1.6mm
- Termination: Solder lug, Manual wave soldering temperature peak 260°C
- Certification: RoHS compliant
- Switch Function: SPDT, DPDT with various configurations, support for on-on, on-off-on, and MOM off-mom functions
Buy the Buy Multicomp Pro Switch Part Number 3MS1R2M1QE Online
Purchase the Multicomp Pro industrial rocker and paddle switch 3MS1R2M1QE online today for dependable control solutions. Designed to withstand harsh environments, it features high-quality materials including nylon housing and brass contacts, with a rated resistance of 2A at 120V AC or 28V DC. Suitable for panel mounting with solder lug terminations, it offers various actuator options for versatile switching needs. Certified RoHS compliant, this switch ensures safety and environmental responsibility, providing lasting performance for automation and control applications.
Buy Multicomp Pro 3MS1R2M1QE rocker switch now and experience unmatched reliability and performance in industrial control systems.
