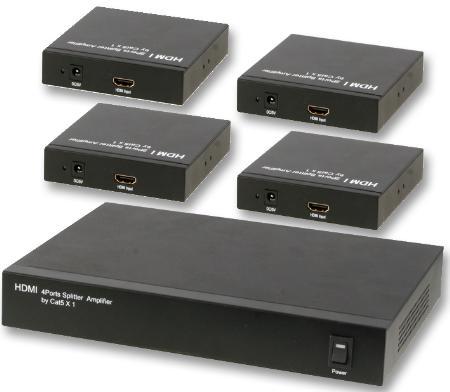

MULTICOMP PRO 5015010 HDMI Extender Splitter
The MULTICOMP PRO HDMI Over Cat5 Extender Plus x4 Splitter is a versatile solution for distributing HDMI signals. It allows for the simultaneous distribution of a single HDMI input to four separate displays, utilizing standard Cat5e/6 cabling for extended transmission distances. This splitter supports resolutions up to 1080p and is suitable for a wide range of applications including retail displays, conference rooms, educational environments, and data center control systems. The included receivers work as a full functional module, simplifying installation and operation. It follows IEEE-568B standards and offers a cost-effective alternative to traditional HDMI cabling.
MULTICOMP PRO 5015010 HDMI Extender Splitter Specifications:
- Signal Inputs / Output: 5 Voltsp-p (TTL)
- Maximum Single Link Range: 1920x1080P
- Output Video: HDMI1.2a
- Vertical Frequency Range: 50/60Hz
- Video Amplifier Bandwidth: 1.65Gpbs/165MHz
- Interlaced Resolutions: 480i, 576i, 1080i
- Progressive Resolutions: 480p, 576p, 720p, 1080p
- Size of HDMI 4 Ports Splitter Amplifer: 270mm × 180mm × 40mm
- Weight(Net) Splitter: 1300g
- Size of Receiver: 100mm × 65mm × 25.5mm
- Weight of Receiver: 385g
- Operating Temperature: 0 to +70°C
- Operating Humidity: 10% to 85 % RH(no condensation)
- Storage Temperature: -10°C to +80°C
- Storage Humidity: 5% to 95 % RH(no condensation)
- Power Supply for Splitter: 5V DC@3A,15W
- Power Supply for Receiver: 5V DC@2A, 5W
- Converter Unit Approvals: FCC, CE, UL
- Power Supply Approvals: UL, CE, FCC
- Warranty: 12 months
Buy the 50-15010 MULTICOMP PRO HDMI Extender Splitter | myMectronic
Purchase the MULTICOMP PRO 50-15010 HDMI Extender Splitter securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 5015010?
You can click on the BUY or RFQ button to purchase 5015010 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 5015010?
You can download the 5015010 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 5015010?
MULTICOMP PRO
