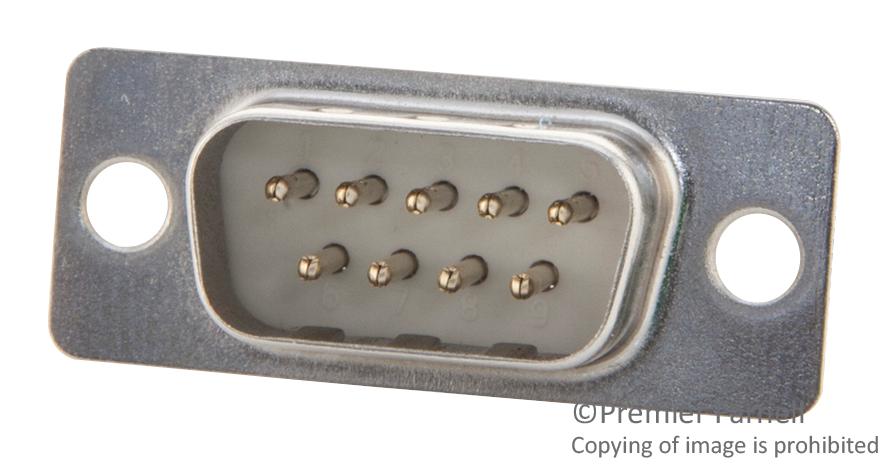

MULTICOMP PRO 550109PA02F1 D-Sub Connector
The 5501 series from Multicomp Pro features male and female D-sub connectors designed for reliable connections in industrial environments. With a current rating of 3A and a voltage rating of 250VAC/DC, these connectors operate effectively from -40°C to 85°C. Constructed with copper alloy contacts that are gold-plated, they ensure excellent conductivity and durability. The connectors support 9 to 50 pins, with low contact resistance of 30 milliohms and high insulation resistance of 5000 megaohms. Their sturdy high-temperature plastic insulators and tin-plated metal finishes make them ideal for versatile electronic and industrial applications.
MULTICOMP PRO 550109PA02F1 D-Sub Connector Specifications:
- Current Rating: 3A
- Voltage Rating: 250VAC/DC
- Temperature Range: -40°C to 85°C
- Contact Material: Copper alloy with gold plating
- Contact Resistance: 30 milliohms maximum
- Insulation Resistance: 5000 megaohms
- Withstand Voltage: 1000V AC for 1 minute
- Insulator: High-temperature plastic
- Finish: Tin-plated metal
- Number of Contacts: 9 to 50 pins
- Dimension: 20.38 mm diameter
Buy the Multicomp Series 5501 D-Sub Connector: 5501-09PA-02-F1
Upgrade your electronic and industrial projects with the durable and reliable D-sub Connectors from the 5501 series. Featuring a current rating of 3A and a voltage rating of 250VAC/DC, these connectors are designed to perform in demanding environments. Their copper alloy contacts with gold plating provide excellent conductivity, while the high-temperature plastic insulators ensure stability across a wide temperature range. Perfect for applications requiring low contact resistance and high insulation resistance, these connectors deliver consistent performance and easy installation for modern electronic systems.
Order your Multicomp Series 5501 D-Sub Connector today and ensure reliable connectivity with high-quality industrial-grade connectors.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 550109PA02F1?
You can click on the BUY or RFQ button to purchase 550109PA02F1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 550109PA02F1?
You can download the 550109PA02F1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 550109PA02F1?
MULTICOMP PRO
