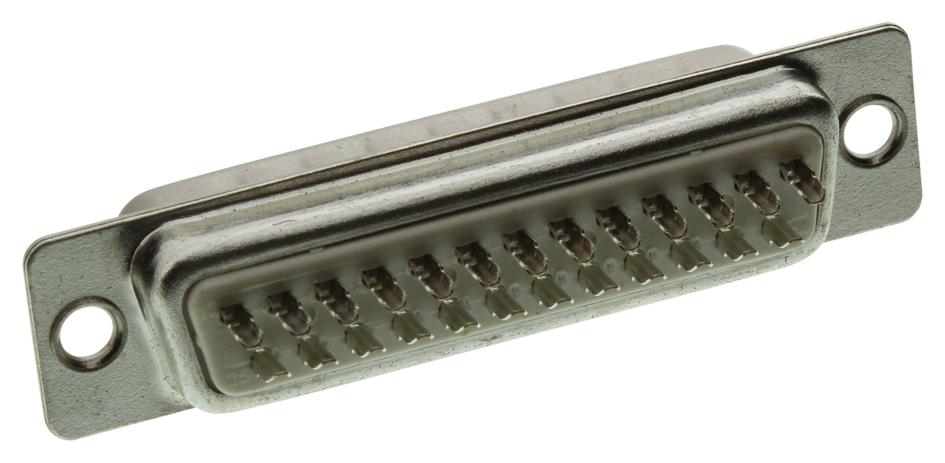

MULTICOMP PRO 550125PA02F1 D-Sub Connector
The 5501 series from Multicomp Pro features male and female Type D sub connectors suitable for industrial applications. These connectors handle currents up to 3A and voltages of 250VAC/DC. Operating in a temperature range of -40°C to 85°C, they are made from high-temperature plastic insulators with copper alloy contacts, gold-plated for reliable electrical performance. Available in 9, 15, 25, 37, and 50-pin configurations, they exhibit low contact resistance of 30 milliohms and an insulation resistance of 5000 megaohms, ensuring durability and safety in complex electronic systems.
MULTICOMP PRO 550125PA02F1 D-Sub Connector Specifications:
- Current Rating: 3A
- Voltage Rating: 250VAC/DC
- Temperature Range: -40°C to 85°C
- Contact Material: Copper alloy, nickel undercoated, gold plated
- Insulator Material: High-temperature plastic
- Contact Resistance: 30 milliohms
- Insulation Resistance: 5000 megaohms
- Withstand Voltage: 1,000V AC/minute
- Number of Pins: 9, 15, 25, 37, 50
- Dimensions vary with pin count, e.g., 9-pin: 16.92 x 24.99 mm, 50-pin: 52.81 x 61.11 mm
Buy the Multicomp U0026 Pro 550125PA02F1 – Reliable D-Sub Connectors for Industrial Applications
Purchase the high-quality D-Sub Connector from Multicomp Pro today and ensure robust and reliable connections in your electronic systems. Designed for industrial applications, it supports up to 3A current and 250VAC/DC voltage, suitable for a wide range of equipment and control systems. Made from durable copper alloy contacts with gold plating, these connectors feature a wide operating temperature range from -40°C to 85°C, low contact resistance, and high insulation resistance. Easily available online for immediate delivery, these connectors provide excellent performance and long-term durability for your projects.
Buy Multicomp U0026 Pro 550125PA02F1 now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 550125PA02F1?
You can click on the BUY or RFQ button to purchase 550125PA02F1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 550125PA02F1?
You can download the 550125PA02F1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 550125PA02F1?
MULTICOMP PRO
