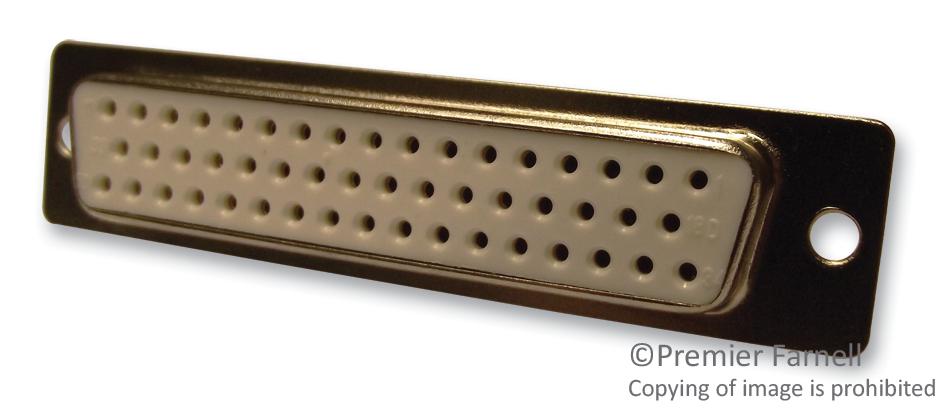

MULTICOMP PRO 550150SA02F1 D-Sub Female Connector
The 50-way 3A D-subminiature female receptacle features gold-plated nickel undercoated copper alloy stamped contacts. It is designed with a PBT UL94V-0 insulator and utilizes solder termination. The connector offers a maximum contact resistance of 30 milliohms, a minimum insulation resistance of 5 gigaohms, and a dielectric withstanding voltage of 1000VAC for one minute. Suitable for operating temperatures from -40°C to 85°C, it is ideal for various electronic applications with reliable performance.
MULTICOMP PRO 550150SA02F1 D-Sub Female Connector Specifications:
- Current Rating : 3A AC/DC
- Voltage Rating : 250V AC/DC
- Contact Resistance : 30mΩ Max.
- Insulation Resistance : 5,000MΩ Min.
- Withstanding Voltage : 1,000V AC/Minute
- Operating Temperature : -40°C to +85°C
- Insulator : PBT (UL94V-0)
- Contact Material : Copper alloy, Nickel under coated, Gold plated
- Front Metal Shell : Nickel plated
- Rear Metal Shell : Tin plated
- Number of Pins : 50
- Termination : Solder
- Dimensions : Refer to datasheet for specific millimeter measurements
- RoHS Compliant
Buy the Buy Multicomp D-Sub Female Part Number 550150SA02F1 Online
Enhance your electronic assemblies with the reliable 50-pin D-Sub female connector. Featuring gold-plated contacts and a robust PBT insulator, it ensures excellent signal integrity. With a maximum contact resistance of 30 milliohms and insulation resistance of 5 gigaohms, it’s built for durability. Suitable for temperatures from -40°C to 85°C, this solder type connector provides secure connections in demanding environments. Buy online now for fast delivery and trusted performance in your electronic needs.
Order your Multicomp Series550150SA02F1 50-Pin D-Sub Female Connector today and ensure reliable, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 550150SA02F1?
You can click on the BUY or RFQ button to purchase 550150SA02F1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 550150SA02F1?
You can download the 550150SA02F1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 550150SA02F1?
MULTICOMP PRO
