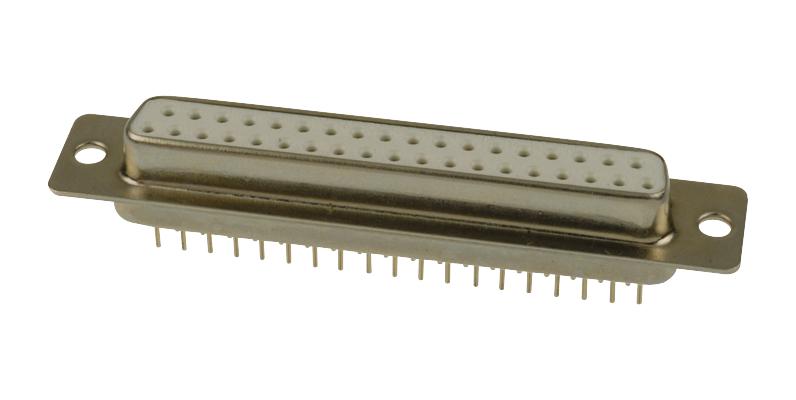

MULTICOMP-PRO 550237SA01F1 D-Sub Receptacle
The 37-way 3A DIP straight DC standard D-subminiature receptacle features gold-plated nickel undercoated copper alloy stamped contacts. This female connector from the 5502 series provides high-temperature plastic insulation and solder termination, making it suitable for industrial, communications, and networking applications. It is designed with durability and reliable electrical connection in mind, though lead times may be extended due to market demand. This product is exempt from discounts and includes a 12-month limited warranty.
MULTICOMP-PRO 550237SA01F1 D-Sub Receptacle Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 5,000MΩ Min.
- Withstanding Voltage: 1,000V AC for One Min.
- Operating Temperature Range: -40°C to +85°C
- Insulator Material: High Temp. Plastic
- Contact Material: Copper Alloy Nickel Undercoated, Selective Gold Plated
- Shell Material: Metal Iron with Tin Plated
- Number of Positions: 37
- Termination: Solder
Buy the Buy Multicomp Pro D-Sub Receptacle Part Number 550237SA01F1 Online
Purchase the high-quality Multicomp Pro D-Sub Receptacle Part 550237SA01F1 online today to secure durable and reliable electrical connections. Designed with gold-plated contacts and high-temperature plastic insulation, this 37-position connector supports industrial and networking applications with a current rating of 3A and voltage of 250V. Its high insulation resistance of 5,000MΩ and withstand voltage of 1,000V AC ensure safety and performance. Ideal for PCB mounting, it features solder termination for easy assembly and long-lasting service life. Buy now for dependable performance.
Order your Multicomp Pro D-Sub Receptacle Part Number 550237SA01F1 today and ensure reliable connections for industrial and communication projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 550237SA01F1?
You can click on the BUY or RFQ button to purchase 550237SA01F1 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 550237SA01F1?
You can download the 550237SA01F1 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 550237SA01F1?
MULTICOMP-PRO
