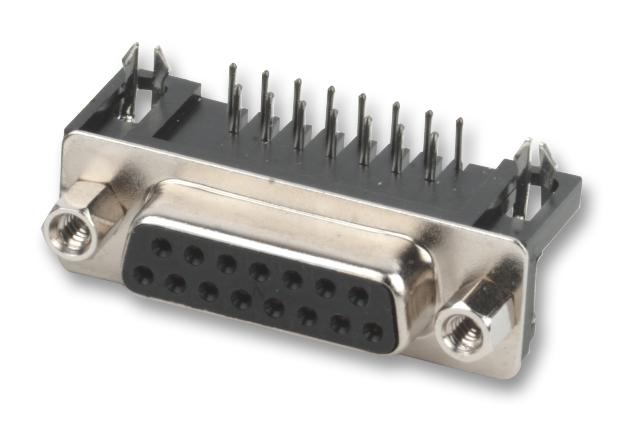

MULTICOMP PRO 5504F115S02A03 15-way PCB Right-Angle D-Sub Connector
The 5504F1-15S-02A-03 is a 15-way, 3A right-angle D-subminiature female connector designed for PCB mounting. It features gold-plated phosphor bronze contacts, high-temperature PBT insulator, an 8.08mm footprint, and solder termination. Made of copper alloy with nickel-plated metal shell, it ensures durability and reliable electrical connection for industrial applications. Suitable for electronic device assembly, this connector supports versatile configurations including options for board lock and hex screw, offering enhanced security and ease of installation, ideal for automation, control systems, and manufacturing equipment.
MULTICOMP PRO 5504F115S02A03 15-way PCB Right-Angle D-Sub Connector Specifications:
- Number of Ways: 15
- Current Rating: 3A
- Voltage Rating: 250V AC/DC
- Contact Material: Copper Alloy
- Contact Plating: Gold on Contact Area, Tin on Solder Tail
- Insulation Material: PBT High-Temperature Plastic
- Shell Material: Nickel-Plated Metal Iron
- Mounting Style: PCB Right Angle
- Footprint: 8.08mm
- Operating Temperature Range: -40°C to +85°C
- Max Contact Resistance: 30mΩ
- Insulation Resistance: 5,000MΩ Min.
- Withstanding Voltage: 1,000V AC for One Minute
- Thread Size: #4-40 UNC
- Dimensions: Millimetres, Pos A 16.33, B 24.99, C 30.81 for 9 position; Pos A 24.66, B 33.32, C 39.14 for 15 position; Pos A 38.38, B 47.04, C 53.04 for 25 position; Pos A 54.83, B 63.5, C 69.32 for 37 position.
Buy the Multicomp Pro 5504F1-15S-02A-03 – Reliable PCB Right Angle D-Sub Connector for Industrial Applications
Secure your electronic assemblies with the 15-way PCB right-angle D-Sub connector by Multicomp Pro. Rated for 3A and 250V, it features gold-plated contacts, high-temp PBT insulator, and a compact 8.08mm footprint, making it ideal for industrial automation, control systems, and electronic device manufacturing. Its durable copper alloy shell and solder termination ensure reliable electrical connections under demanding conditions. Easy to install and compatible with various configurations, this connector provides high performance, long-lasting durability, and peace of mind for professional applications. Purchase online now to upgrade your electronics with trusted quality.
Buy Multicomp Pro 5504F1-15S-02A-03 now and experience unmatched reliability and performance in industrial electronic connectors.
