MULTICOMP-PRO 5504F137S0203F1 D-Sub Connector
The 5504F1-37S-02-03-F1 is a high-quality 37-way, 5A right-angle D-subminiature socket designed for reliable PCB connections in industrial and electronic applications. It features gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance, and a durable glass-filled thermoplastic insulator housing with a PBT plus 30% glass composition, providing excellent thermal stability. This connector supports solder termination, with a contact resistance of 20 milliohms max and insulation resistance of 1000 megaohms. It withstands voltages up to 1000VAC, operates within a temperature range of -55°C to 105°C, and is ideal for industrial control, automation, and instrumentation systems.
MULTICOMP-PRO 5504F137S0203F1 D-Sub Connector Specifications:
- Material: Insulator - Glass-filled thermoplastic with PBT plus 30% glass
- Contact Material: Copper alloy with gold plating
- Contact Finish: Selective gold over nickel
- Shell Finish: Nickel-plated carbon steel
- Voltage Rating: 1000VAC for one minute
- Current Rating: 5A per contact
- Insulation Resistance: 1000 megaohms
- Contact Resistance: 20 milliohms max at 1A DC
- Dielectric Withstanding Voltage: 1000VAC for one minute
- Operating Temperature Range: -55°C to 105°C
- Mounting Type: PCB solder connections
- Connector Style: Right-angle socket
- Number of Positions: 37
- Durability: Tested for extensive cycles
- Color: Black

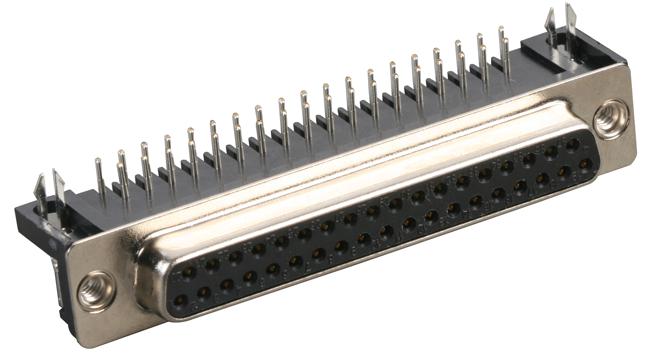

Buy the Multicomp 5504F1-37S-02-03-F1 – Reliable PCB Mount D-Sub Connector for Industrial Applications
Purchase the versatile D-Sub Connector today online to ensure reliable PCB connections in your industrial, automation, or electronic projects. Designed for durability and consistent performance, this connector features gold-plated copper contacts for enhanced conductivity and corrosion resistance. Its glass-filled thermoplastic insulator guarantees thermal stability during demanding applications. Suitable for PCB solder mounting, providing a secure connection with a maximum contact resistance of 20 milliohms and insulation resistance of 1000 megaohms. Operates efficiently within a temperature range of -55°C to 105°C, making it ideal for extreme environments, ensuring long-term reliability and optimal system performance.
Get Multicomp 5504F1-37S-02-03-F1 today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 5504F137S0203F1?
You can click on the BUY or RFQ button to purchase 5504F137S0203F1 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 5504F137S0203F1?
You can download the 5504F137S0203F1 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 5504F137S0203F1?
MULTICOMP-PRO
