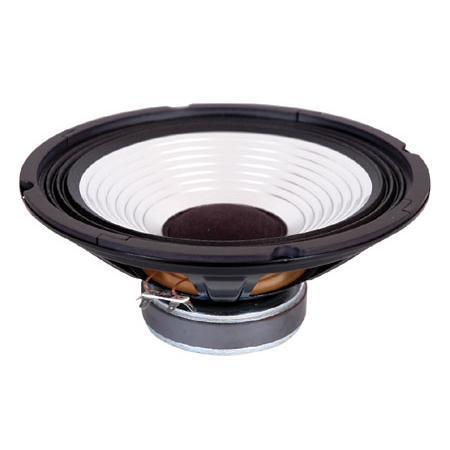

MULTICOMP PRO 551300 10-inch Cone Woofer
This 10-inch cone woofer is ideal for sound reinforcement, musical instruments, and audio applications. It features an aluminum cone with a treated cloth surround, stamped steel basket, and a 38.5mm voice coil. With a magnet weight of 567g and impedance of 780 ohms, it delivers a frequency range from FO to 8000Hz and sensitivity of 902 SB/W/M at 2.83V. Rated at 50W RMS and 100W peak, it offers durable construction including a ferrite magnet and aluminum former, perfect for quality audio playback and speaker design projects.
MULTICOMP PRO 551300 10-inch Cone Woofer Specifications:
- Dimensions: 10" (256mm)
- Impedance: 780 ohms
- Input Power: Rated 50W, Max 100W
- Free Air Resonance: 145 ± 9Hz
- Sensitivity: 902 SB/W/M, 2.83V
- Frequency Range: FO to 8000Hz
- Weight: 1820 grams
- Basket: Stamped Steel
- Dust Cap: Felt
- Voice Coil Diameter: 38.5mm
- Former Material: Aluminium (ASV)
- Magnet Diameter: > 110mm
- Magnet Height: 217mm
- Magnet Material: Ferrite
- Gap Height: 6mm
- DC Resistance: 6.80 ohms
- Resonance Frequency Fs: 48.4Hz
- Maximum Impedance Zm: 30.60 ohms
- Qms: 3.413
- Qes: 0.99
- Qts: 0.767
- Xmax: 3.5mm
- Mms: 28.91g
- Vas: 66.28 liters
- Sensitivity SPL: 90.7 dB
- Cms: 0.375mm/N
- Bl Product: 7.769 N/A
- Driver Piston Diameter: 212mm
- Voice Coil Inductance Le: 1.14mH
Buy the Multicomp Series Woofer: 10 Inch Cone Woofer: 551300
Enhance your audio projects with this high-quality 10-inch cone woofer featuring aluminum cone, ferrite magnet, and a power capacity of 50W RMS. Its versatile design makes it perfect for sound reinforcement, musical instruments, and speaker systems. With a frequency response up to 8000Hz, sensitivity of 90dB, and durable construction, it ensures clear and powerful sound quality. Easy to install, this speaker is ideal for professionals and hobbyists seeking reliable audio performance for various applications, including home theaters, PA systems, and custom speakers.
Buy Multicomp 551300 now and experience unmatched reliability and performance for your audio or musical instrument applications with this durable 10-inch cone woofer.
