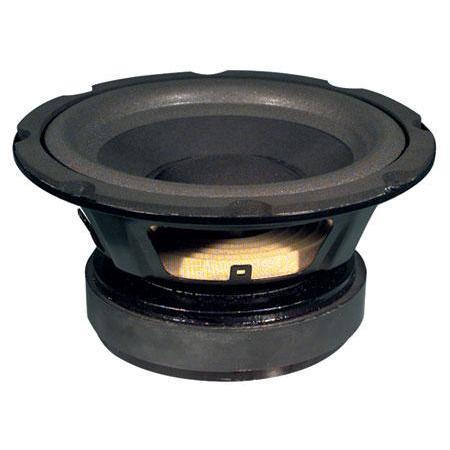

MULTICOMP PRO 552421 High Excursion Woofer
This high-performance 8-inch woofer offers exceptional low-frequency response with a long throw design, optimized for vented enclosures in home theater and car audio. It features a lightweight paper cone with foam surround, a bumped magnet, and vented pole for enhanced cooling and durability. Capable of handling 120W RMS and 240W peak power, it has a frequency range of 25Hz to 1kHz and a nominal impedance of 4 ohms. The heavy-duty stamped steel basket and high-quality voice coil ensure reliable, high-efficiency operation and excellent sound clarity. Suitable for subwoofers and multi-way speaker systems.
MULTICOMP PRO 552421 High Excursion Woofer Specifications:
- Dimensions: 8 inches (209mm)
- Impedance: 4 ohms
- Rated Power: 120W RMS
- Peak Power: 240W
- Free Air Resonance (Fs): 27Hz + 5Hz
- Sensitivity: 87dB (W/M, 2V)
- Frequency Range: 25Hz to 1kHz
- Voice Coil Diameter: 49.5mm
- Voice Coil Length: 224mm
- Layer: 24mm
- Former Material: Kapton
- Wire Material: Copper (SVW)
- Cone Material: Non-pressed paper
- Surround Material: Foam
- Magnet Diameter: 145mm
- Magnet Height: 222mm
- Magnet Material: Ferrite
- Weight (Magnet): 1330g
- Gap (H): 78mm
- Resonance Frequency (Fs): 30.4Hz
- DC Resistance (Re): >3.20Ω
- Maximum Impedance (Zm): 155.90Ω
- Mechanical Q Factor (Qms): 10.74
- Electrical Q Factor (Qes): 0.224
- Total Q Factor (Qts): 0.219
- Xmax (Linear Displacement): 8mm
- Moving Mass (Mms): 62.75g
- Vas (Equivalent Volume): 27.67 liters
- Sensitivity (SPL): 87.3 dB
- Suspension Compliance (Cms): 0.437mm/N
- BL product: 13.1 N/A
- Driver Piston Diameter: 164mm
- Voice Coil Inductance (Le@1K): 2.79mH
Buy the Multicomp 552421 – Reliable Woofer for Industrial Applications
Elevate your sound system with the High Excursion Woofer designed for superior low-frequency response. Capable of handling 120W RMS and peak 240W, it features a lightweight paper cone, foam surround, and a robust stamped steel basket for enhanced durability. Its long throw design allows for deep bass reproduction, making it ideal for vented enclosures, subwoofers, and multi-way speaker systems in both home and automotive environments. Easy to integrate and built for high output, this speaker ensures reliable, high-quality sound performance for professional audio applications.
Order your Multicomp Series552421 high excursion woofer today and enhance your audio projects with dependable performance and durable construction.
