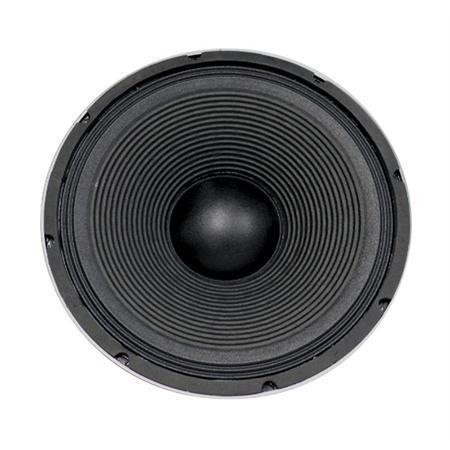

MULTICOMP PRO 552963 High Power Speaker Driver
This 15-inch speaker driver is perfect for sound reinforcement and subwoofer enclosures, offering 8 ohms impedance, 200W RMS power handling, and a frequency response from 32Hz to 3kHz. It features a cast aluminium basket, 67 oz magnet, paper cone with cloth surround, and a paper dust cap. The driver has a resonance frequency of 32Hz, an Xmax of 7.56mm, and a total Q factor of 0.39, ensuring efficient and powerful sound output. Dimensions include an overall diameter of 15.28 inches, with a 13.94-inch cutout size and 6.30-inch mounting depth, suitable for professional audio systems.
MULTICOMP PRO 552963 High Power Speaker Driver Specifications:
- Nominal Diameter: 15 inch
- Rated Impedance: 8 ohms
- Power Handling Capacity: 200W RMS
- Operating Bandwidth: 32Hz ~ 3KHz
- Sensitivity: 97 dB (1W/M)
- Voice Coil Diameter: 3 inch
- Resonance Frequency Es: 32Hz
- DC Resistance Re: 7.2 ohms
- Mechanical Q Factor Qms: 3.3
- Electrical Q Factor Qes: 0.437
- Total Q Factor Qts: 0.39
- Vas: 286 liters
- Coil Inductance Le: 1.6188 mH
- Efficiency Bandwidth Product EBP: 73.23
- X-max: 7.56mm
- Basket: Cast Aluminium
- Magnet Type: 67 OZ
- Cone Material: None press paper
- Surround: Cloth
- Dust Cap: Paper
- Mounting Diameter: 15.28 inches
- Cutout Diameter: 13.94 inches
- Mounting Depth: 6.30 inches
Buy the Buy Memelectronics Speaker Driver Part Number 552963 Online
Purchase the Memelectronics high-power speaker driver today online and enjoy superior sound performance in your audio projects. Featuring an impedance of 8 ohms and a power capacity of 200W RMS, this driver is designed for professional sound reinforcement and subwoofer enclosures. Its wide frequency response from 32Hz to 3kHz, combined with robust construction including a cast aluminium basket and paper cone, offers reliable durability and excellent audio clarity. Easy to install with a mounting depth of 6.30 inches and a cutout size of 13.94 inches, making it an ideal choice for custom audio applications.
Order your Memelectronics Series55-2963 speaker driver today and enhance your sound reinforcement projects with professional-grade audio quality.
