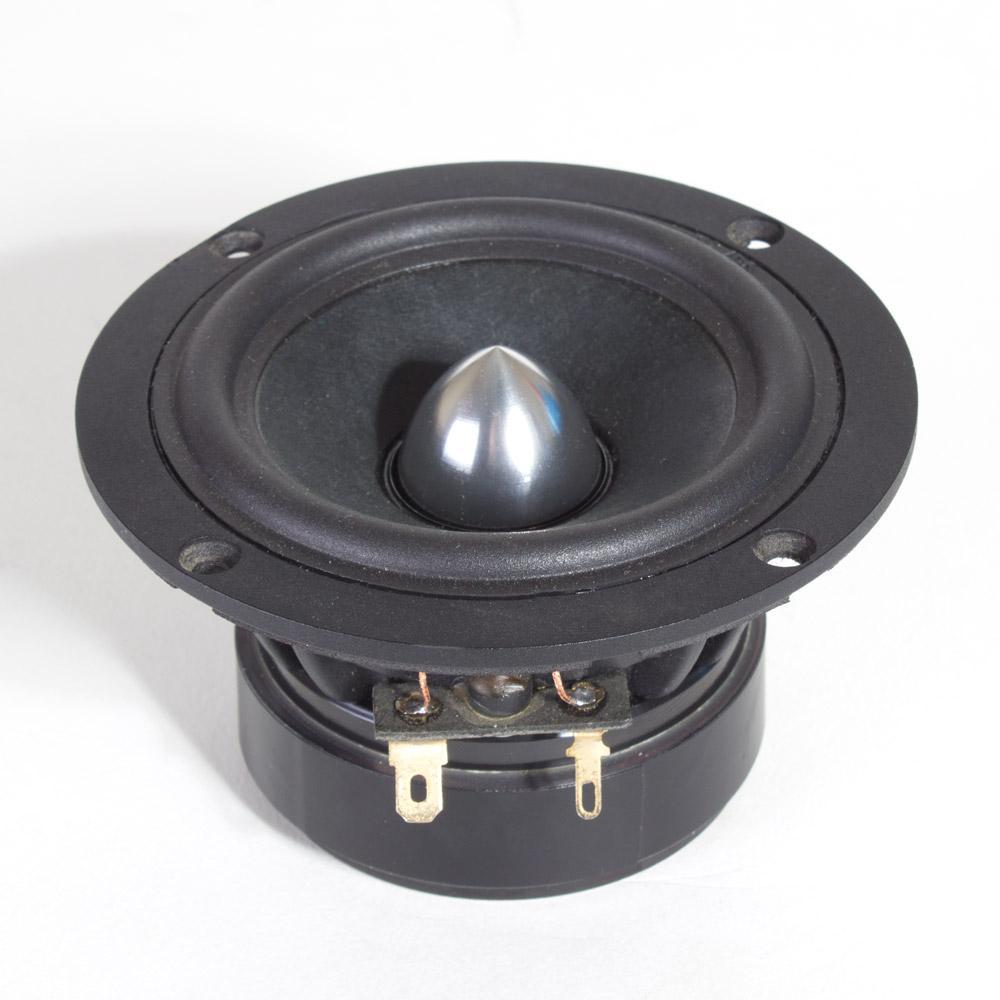

MULTICOMP PRO 555650 audio woofer
The 3.5-inch multicomp woofer features a paper-Kevlar fibre cone and rubber surround, housed in a vented die-cast aluminium frame with a copper pole cap for enhanced durability. Designed for high-performance audio, it has an impedance of 8 ohms, a resonance frequency of 100.7 Hz, and a maximum linear displacement of 1 mm, ensuring precise sound reproduction across a wide frequency range up to 18 kHz. Its compact size and sturdy construction make it ideal for demanding loudspeaker applications requiring rich bass and clear audio output.
MULTICOMP PRO 555650 audio woofer Specifications:
- Dimensions: 3.5 inches (98mm), mounting depth 1.43 inches
- Impedance: 8 ohms
- Resonance Frequency: 100.7Hz
- Sensitivity: 82.4 SPL (8B)
- Frequency Range: FO ~ 18000Hz
- Maximum Power Input: 15W
- Voice Coil Diameter: 25.4mm
- Magnet Diameter: 65mm, height 215mm, material Ferrite
- Basket: Die cast aluminium
- Cone Material: Paper+Kevlar Fibre
- Surround Material: Rubber
- Weight: 560 grams
- Phase Plug: Aluminium with copper cap
- Wire Material: Copper Clad Aluminium (CCAW)
- Resonance Frequency (Fs): 100.7Hz
- Total Q Factor (Qts): 0.33
- Mechanical Q Factor (Qms): 3.524
- Electrical Q Factor (Qes): 1.687
- Linear Displacement (Xmax): -1mm
- Gap height: 6mm
- DC Resistance: 6.3 ohms
Buy the Buy Multicomp Audio 3.5 Inch Woofer Part Number 555650 Online
Purchase your Multicomp 3.5-inch woofer online today and experience superior sound quality with a cone made of paper and Kevlar fibre, offering rich bass and clear audio. Ideal for high-performance loudspeakers, it features a robust die-cast aluminium basket, copper pole cap, and a vented design to ensure durability and efficient operation. With an impedance of 8 ohms and resonance at 100.7 Hz, this woofer provides excellent frequency response up to 18 kHz, making it perfect for demanding sound projects requiring reliability and crisp sound reproduction.
Order your Multicomp Series555650 3.5 Inch Woofer today and enhance your audio projects with high-quality, durable sound components designed for demanding applications.
