MULTICOMP PRO 78L15 Voltage Regulator
The 78L15 is a three-terminal positive voltage regulator capable of delivering up to 100mA of output current with adequate heat sinking. It features internal current limiting to prevent peak output currents from exceeding safe levels, as well as safe-area protection for the output transistors to control internal power dissipation. When internal power dissipation becomes excessive, thermal shutdown activates to prevent overheating. This regulator simplifies replacing Zener diode and resistor setups, offering significantly improved output impedance and reduced quiescent current. Common applications include logic systems, Hi-Fi audio equipment, and other solid-state electronic devices. Although primarily designed as a fixed voltage regulator, external components can be added to adjust the output voltage and current. Key features include ±5% voltage tolerance over temperature, thermal overload protection, short-circuit current limiting, and safe-area protection for transistors.
MULTICOMP PRO 78L15 Voltage Regulator Specifications:
- Output Voltage Tolerance: ±5% over temperature
- Output Current: 100mA
- Input Voltage Range: Up to 35V
- Thermal Shutdown: Yes
- Short-Circuit Current Limiting: Yes
- Safe-Area Protection: Yes
- Package Type: TO-92
- Maximum Junction Temperature: +125°C
- Operating Temperature Range: 0°C to +70°C
- Soldering Lead Temperature (10 sec): +230°C
- Thermal Resistance Junction-to-Case: ~60°C/W
- Line Regulation: 37 to 250 mV
- Load Regulation: 35 to 150 mV
- Quiescent Current: 3.1 to 47 mA
- Output Noise Voltage: 90 μV (f=10Hz to 10kHz)
- Ripple Rejection: 37 to 51 dB
- Dimensions (Millimeters): A: 4.32-5.33, B: 4.45-5.2, C: 3.18-4.19, D: 4.1-5.5, F: 0.35-0.5, T: 1.14-1.53

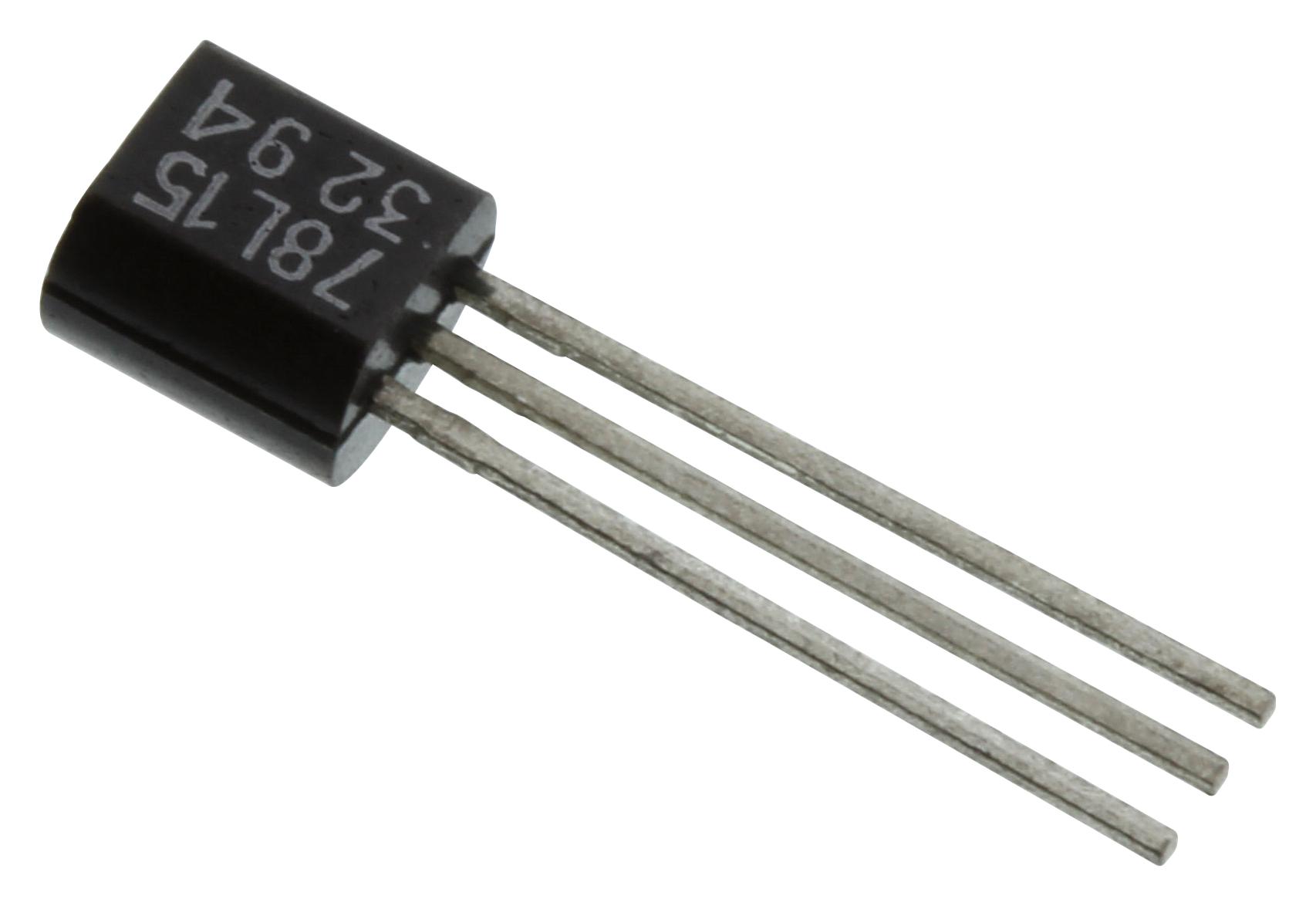

Buy the Buy Multicomp 78L15 Part Number 78L15 Online
