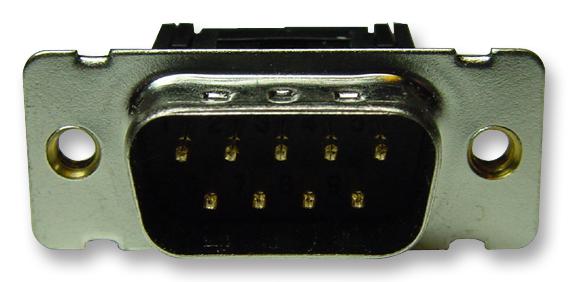

MULTICOMP PRO 8FTM09P30N1FEC D-Sub IDC Connector Housing
The MULTICOMP PRO 8FTM09P-30N1-FEC is a D-Sub IDC (Insulation Displacement Connector) connector housing, part of the 8F series. It's designed for applications requiring secure and reliable connections, commonly found in industrial control systems, data transmission equipment, and networking devices. The connector features a metal shell for shielding and durability, gold-plated contacts for low contact resistance and corrosion resistance, and is suitable for stranded wire sizes. Its IDC design simplifies termination, eliminating the need for individual wire crimping. The connector's robust construction and reliable performance make it a suitable choice for demanding environments.
MULTICOMP PRO 8FTM09P30N1FEC D-Sub IDC Connector Housing Specifications:
- Current Rating: 1 ampere
- Min. Insulation Resistance: ≥1,000 MΩ (at 500V DC)
- Dielectric Withstanding Voltage: 500V AC (for one minute)
- Operating Temperature: -55°C to +105°C
- Contact Resistance: 15mΩ
- Insulator Material: PBT with glass-fibre reinforced
- Contact Material: Brass
- Contact Plating: Gold over nickel
- Wire Size: AWG 26 and 28 stranded, 1.27mm conductor centre flat cable
- A Dimension: 24.99 mm
- B Dimension: 30.8 mm
- C Dimension: 11.08 mm
- D Dimension: 8.31 mm
- E Dimension: 16.1 mm
- F Dimension: 18.6 mm
- G Dimension: 16.92 mm
- I Dimension (Rear Mounting): 20.47 mm
- I Dimension (Front Mounting): 22.2 mm
