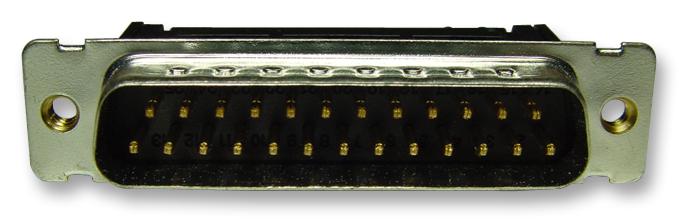

MULTICOMP PRO 8FTM25P30N1FEC D-Sub IDC Connector Housing
The MULTICOMP PRO 8FTM25P-30N1-FEC is a D-Sub IDC (Insulation Displacement Connector) connector housing, part of the 8F series. It is designed for applications requiring a robust and reliable connection, commonly found in industrial automation, data communication, and telecommunications equipment. The connector features a metal shell for shielding and grounding, ensuring signal integrity and protection against electromagnetic interference. The gold-plated contacts provide excellent conductivity and corrosion resistance, while the PBT insulator with glass-fibre reinforcement ensures dimensional stability and electrical insulation. The IDC design simplifies termination, allowing for quick and easy field installation. It is suitable for a variety of applications where a secure and high-performance connection is essential.
MULTICOMP PRO 8FTM25P30N1FEC D-Sub IDC Connector Housing Specifications:
- Current Rating: 1 ampere
- Min. Insulation Resistance: ≥1,000 MΩ (at 500V DC)
- Dielectric Withstanding Voltage: 500V AC (for one minute)
- Operating Temperature: -55°C to +105°C
- Contact Resistance: 15mΩ
- Insulator Material: PBT with glass-fibre reinforced
- Contact Material: Brass
- Contact Plating: Gold over nickel
- Wire Size: AWG 26 and 28 stranded, 1.27mm conductor centre flat cable
- A Dimension: 24.99 mm (0.984 in)
- B Dimension: 30.8 mm (1.212 in)
- C Dimension: 11.08 mm (0.436 in)
- D Dimension: 8.31 mm (0.327 in)
- E Dimension: 16.1 mm (0.634 in)
- F Dimension: 18.6 mm (0.732 in)
- G Dimension: 16.92 mm (0.666 in)
- I Dimension (Rear Mounting): 20.47 mm (0.806 in)
- I Dimension (Front Mounting): 22.2 mm (0.874 in)
- Series: 8F = D-SUB IDC Connector Housing
- Construction Types: TM = With 4# - 40UNC Threaded Insert (With Metal Shell)
- Number of Positions: 09, 15, 25 and 37
- Contact Type: P = Plug (Male)
- Colour Codes: 3 = Black
- Contact Finish: 0 = Selective Gold Flash Over 30 μ Inches Nickel
- Strain Relief: N = Without Strain Relief
- Metal Shell Finish: 1 = Tin Plated Shell (With Grounding Indents)
