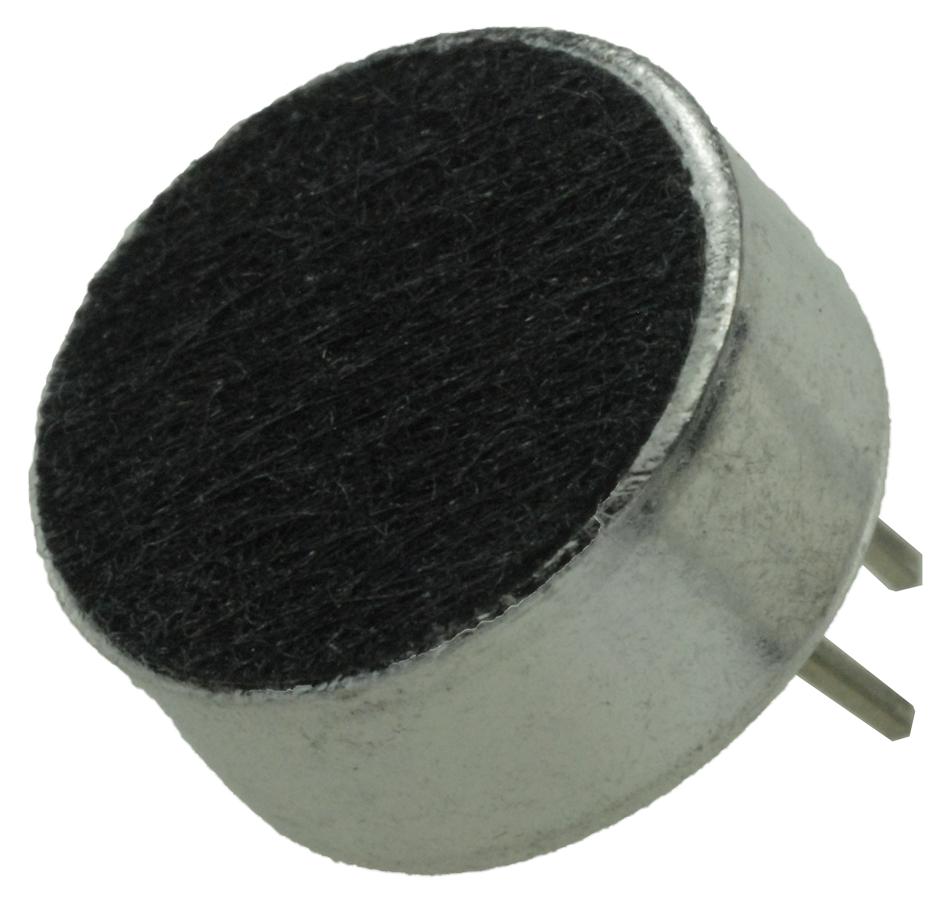

MULTICOMP PRO ABM707RC Omnidirectional Microphone
The ABM-707-RC is a high-quality omnidirectional electret condenser microphone with PCB mounting, suitable for audio recording, consumer electronics, portable devices, and security systems. It features a foil type aluminum electret element for sensitive sound detection, operating at 1.5V up to 10V with a maximum current of 0.5mA. The microphone's frequency response spans 50Hz to 16kHz, with a sensitivity of -41dB at 1kHz and 1V/Pa. It has an impedance below 2.2kΩ at 1kHz, measuring approximately 9.7mm by 4.5mm, ensuring wide application versatility and reliable performance.
MULTICOMP PRO ABM707RC Omnidirectional Microphone Specifications:
- Directivity: Omni directional
- Operating Voltage: 1.5V (up to 10V)
- Maximum Voltage: 10V
- Current Consumption: 0.5mA
- Output Impedance: Less than 2.2kΩ at 1kHz
- Frequency Range: 50Hz to 16,000Hz
- Sensitivity: -41dB at 1kHz, 1V/Pa
- Signal to Noise Ratio: > 60dB (weighted at 1kHz 1Pa)
- Dimensions: approximately 9.7mm x 4.5mm
- Material: Aluminum foil electret
- RoHS Compliant
- Applications: Audio recording, consumer electronics, portable devices, security systems
Buy the Multicomp Microphone – Reliable Omnidirectional for Industrial Applications
Enhance your audio setups with the Multicomp Omnidirectional Microphone. Featuring a sensitive foil electret element, low impedance, and a broad response range from 50Hz to 16kHz, it provides clear sound capture suitable for recordings, consumer electronics, portable gadgets, and security systems. Its PCB mount design ensures easy installation, and operating at 1.5V up to 10V minimizes power consumption for efficient performance. Trust this reliable microphone for consistent audio quality in professional or personal projects.
Buy Multicomp ABM-707-RC now and experience unmatched reliability and high sensitivity in your audio projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ABM707RC?
You can click on the BUY or RFQ button to purchase ABM707RC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ABM707RC?
You can download the ABM707RC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ABM707RC?
MULTICOMP PRO
